284391-3

端子块, PCB 侧面进线 STAC

3 接线板 - 线至板 水平，带板 0.138"（3.50mm） 通孔

得捷:
TERM BLK 3POS SIDE ENT 3.5MM PCB

e络盟:
端子块, PCB 侧面进线 STAC

艾睿:

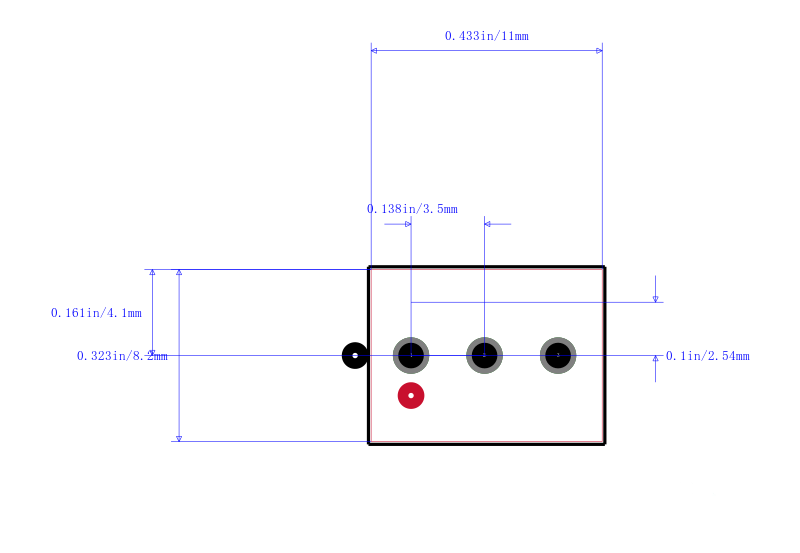

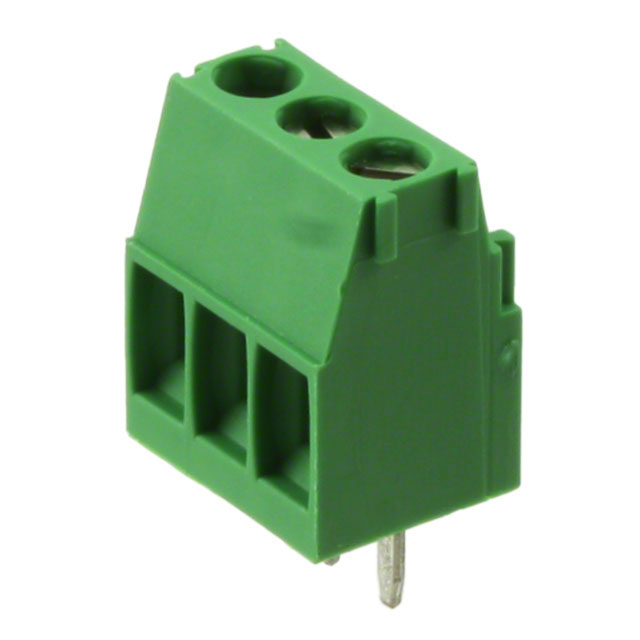

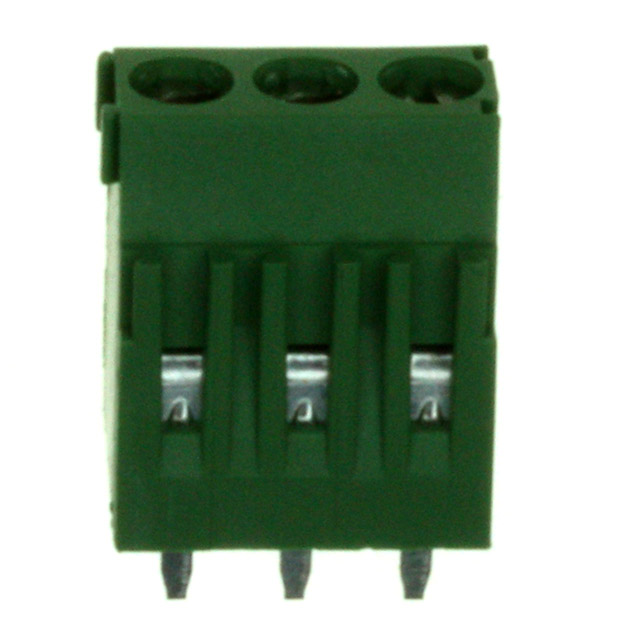

Ideal for testing purposes this eurostyle block 284391-3 PCB terminal block manufactured from TE Connectivity will exceed your needs. This F connector&s;s 3 contacts that are made out of brass and plated with tin/nickel. Its pitch is 3.5 mm. It has a straight body orientation. It has a maximum voltage rating of 300 VAC. This is a 1-row connector. It has a female type gender. 284391-3 is housed in polyamide 6/6. This device has a maximum current rating of 12 A/contact. This quick disconnect terminal has an operating temperature of -40 to 105 °C. This product is 11 mm long, 12.6 mm tall and 8.2 mm deep. It uses the solder termination method. Its wire is 14-30 AWG.

安富利:
Conn Terminal Block F 3 POS 3.5mm Solder ST Thru-Hole 12A/Contact

Chip1Stop:
Conn Eurostyle Block F 3 POS 3.5mm Solder ST Thru-Hole 12A/Contact Box

Verical:
Conn Eurostyle Block F 3 POS 3.5mm Solder ST Thru-Hole 12A/Contact Box

MASTER:
TERMINAL BLOCK PCB, MOUNT STRAIGHT SIDE WIRE ENTRY, STACKING

Powell:
Terminal Block Connectors

Online Components:
TERMI-BLOK PCB SIDE ENTRY STAC

Electro Sonic:
TERMI-BLOK PCB SIDE ENTRY STAC
