218-6LPST

SPST 25mA@24V 6位

DIP SPST 6 位置 表面贴装型 滑动式（标准） 触动器 25mA 24VDC

得捷:
SWITCH SLIDE DIP SPST 25MA 24V

贸泽:
DIP Switches / SIP Switches SPST 6 switch sections

艾睿:

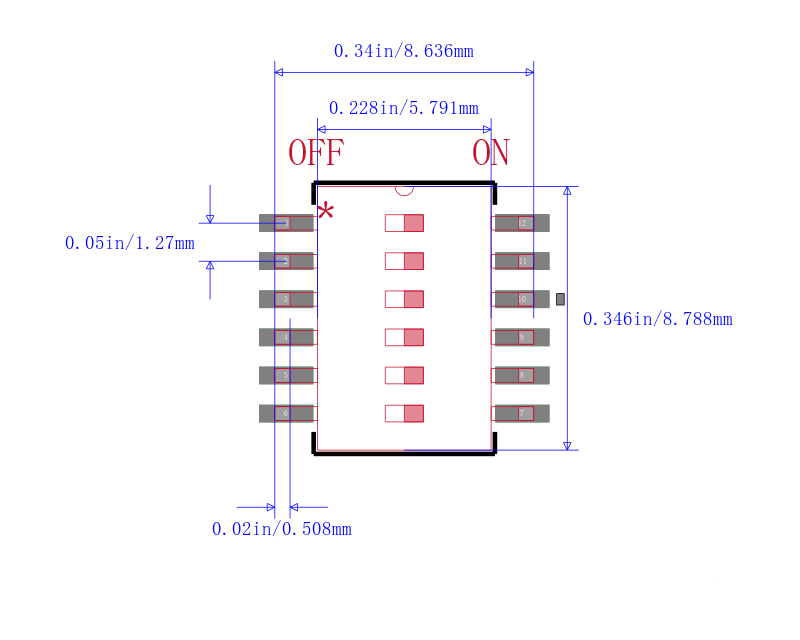

The 218-6LPST dual in-line package switch, developed by CTS, can give you electronic flow control within your printed circuit board. It has a SPST configuration. This device has a maximum current rating of 0.025 A @ 24VDC. This DIP switch has a minimum operating temperature of -55 °C and a maximum of 85 °C. The 218-6LPST DIP switch has a gull wing termination style. This product is 8.79 mm long, 2.65 mm tall and 8.44 mm deep. The maximum DC voltage rating is 24 VDC. This product&s;s terminal pitch is 1.27 mm.

Jameco:
DIP Switch Single Pole Single Throw 6 Flush Slide 0.025 Amp 24 Volt Gull Wing 1.27mm Surface Mount Tube

安富利:
Switch DIP ON OFF SPST 6 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycle 1.27mm SMD Tube

Chip1Stop:
Switch DIP ON OFF SPST 6 Recessed Slide 0.025A 24VDC Gull Wing 1.27mm SMD Tube

Verical:
Switch DIP ON OFF SPST 6 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycles 1.27mm SMD Tube

Electro Sonic:
Switch DIP ON OFF SPST 6 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycles 1.27mm SMD Tube
