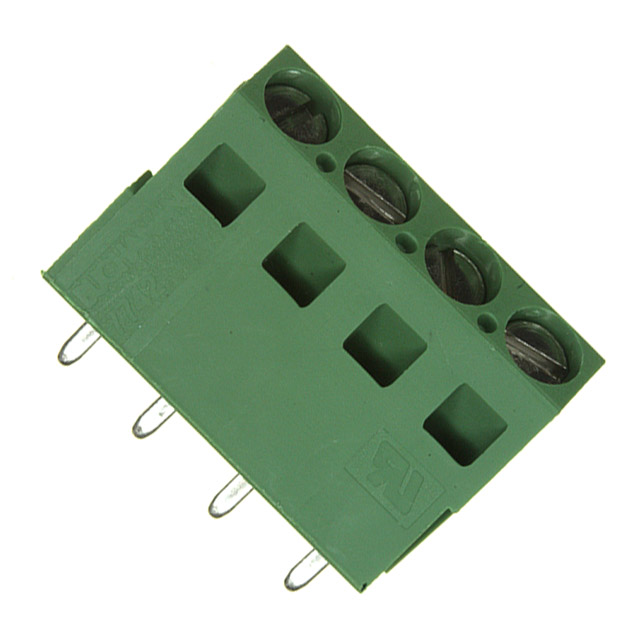

固定接线端子 4 POS 35 DEG 5.08MM
4 接线板 - 线至板 35°(145°)角度,带板 0.200"(5.08mm) 通孔
得捷:
TERM BLOCK 4POS 35DEG 5.08MM PCB
贸泽:
固定接线端子 4 POS 35 DEG 5.08MM
艾睿:
Connecting one or more circuits together, this eurostyle block 282847-4 PCB terminal block from TE Connectivity is a must-have! This is a 1-row connector. Its pitch is 5.08 mm. It has a maximum voltage rating of 300 VAC. This device has a maximum current rating of 17.5 A/contact. 282847-4 is housed in polyamide 6/6. It uses the solder termination method. Its wire is 12-30 AWG. This product is 20.32 mm long, 15 mm tall and 12.5 mm deep.
安富利:
Conn Terminal Block 4 POS 5.08mm Solder Thru-Hole 17.5A/Contact
Chip1Stop:
Conn Terminal Block 4 POS 5.08mm Solder Thru-Hole 17.5A/Contact
Verical:
Conn Eurostyle Block HDR 4 POS 5.08mm Solder Thru-Hole 17.5A/Contact
MASTER:
TERMINAL BLOCK, PCB MOUNT ANGLED ENTRY WIRE, STACKING
Powell:
Terminal Block Connectors
Online Components:
TERMI-BLOK PCB MOUNT 35 4P.5
Electro Sonic:
TERMI-BLOK PCB MOUNT 35 4P.5
触点数 4
线规 12AWG ~ 30AWG
触点电镀 Tin
额定电流 17.5 A
排数 1
电路数 4
易燃性等级 UL 94 V-0
针脚数 4
额定电流Max 17.5A/触头
额定电压Max 300 VAC
额定电压 300 V
工作电压Max 300 VAC
安装方式 Through Hole
引脚间距 5.08 mm
长度 20.3 mm
宽度 12.5 mm
高度 15 mm
引脚间距 5.08 mm
外壳颜色 Green
颜色 Green
触点材质 Brass
外壳材质 Nylon 6/6
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
282847-4 TE Connectivity 泰科 | 当前型号 | 当前型号 |
236-404 WAGO | 功能相似 | 282847-4和236-404的区别 |
1713040 菲尼克斯 | 功能相似 | 282847-4和1713040的区别 |
