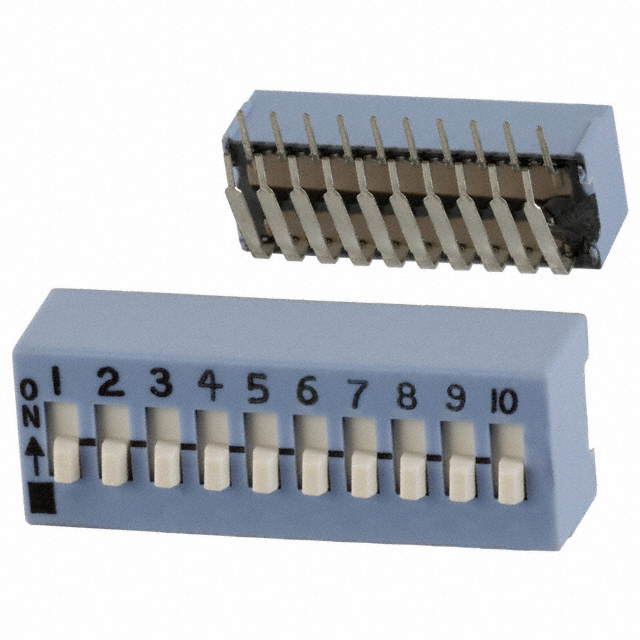

206-10RAST

206RA 系列 单刀单掷 10 位置 直角 凸起式 滑动 致动器 Dip 开关

is manufactured by Electrocomponents and is categorized in the DIP Switches category. 206-10RAST is described as SWITCH SLIDE DIP SPST 50MA 24V. Perfect Parts is a supplier of Switches and other Electromechanicals.

艾睿:
By acting as a series of switches, the 206-10RAST dual in-line package switch from CTS is the ideal component for use on a printed circuit board. It has a SPST configuration. This device has a maximum current rating of 0.05 A @ 24VDC. This DIP switch has a minimum operating temperature of -55 °C and a maximum of 85 °C. The 206-10RAST DIP switch has a PC pin termination style. The maximum DC voltage rating is 24 VDC. This product&s;s terminal pitch is 2.54 mm. This product is 27.58 mm long, 10.16 mm tall and 13.47 mm deep.

Chip1Stop:
Switch DIP OFF ON SPST 10 Raised Slide 0.05A 24VDC PC Pins 2.54mm Thru-Hole Tube

Verical:
Switch DIP OFF ON SPST 10 Raised Slide 0.05A 24VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube

MASTER:
Switch DIP OFF ON SPST 10 Raised Slide 0.05A 24VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube
