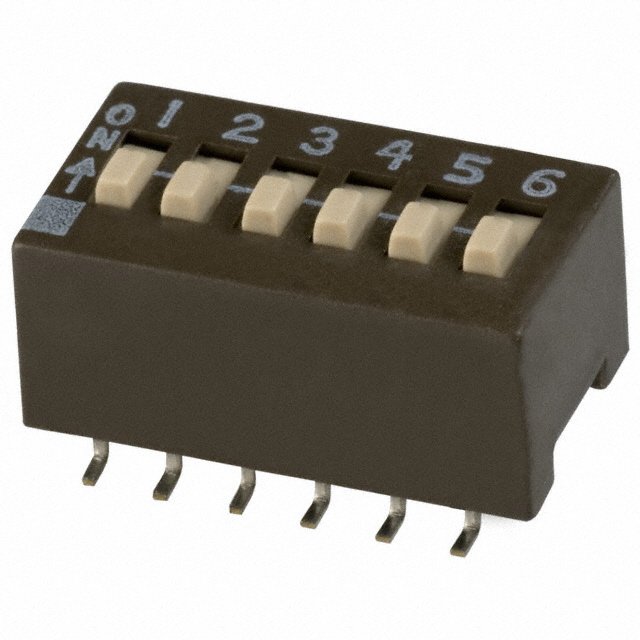

204-6STR概述
6 突起式 滑动 0.05 A 24 Vdc 鸥翼型 Dip 开关
DIP SPST 6 位置 表面贴装型 滑动式（标准） 触动器 50mA 24VDC
得捷:
SWITCH SLIDE DIP SPST 50MA 24V
贸泽:
DIP Switches / SIP Switches DIP SW Gull Wing Gold Plated 6 SW SPST, REEL
艾睿:
Add push button-type user control to your printed circuit board using the 204-6STR dual in-line package switch from CTS. This device has a maximum current rating of 0.05 A @ 24VDC. It has a SPST configuration. This DIP switch has an operating temperature range of -55 °C to 85 °C. The 204-6STR DIP switch has a gull wing termination style. This product&s;s terminal pitch is 2.54 mm. This product is 17.42 mm long, 10.14 mm tall and 10.4 mm deep. The maximum DC voltage rating is 24 VDC.
