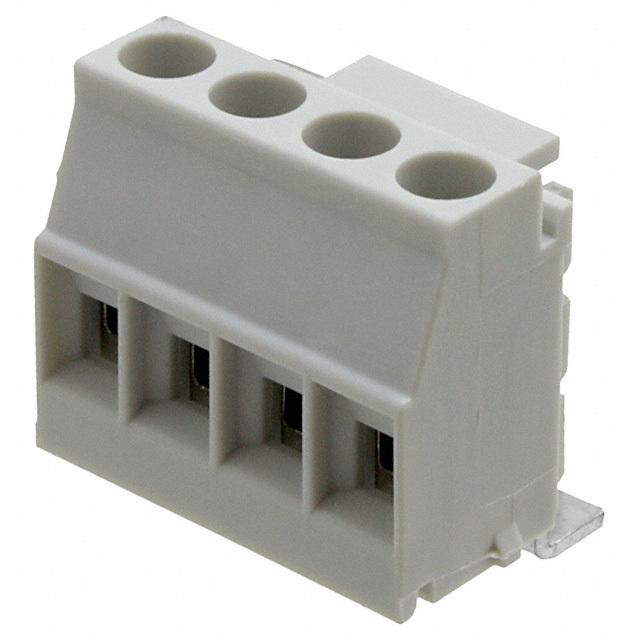

Conn PC Terminal Block F 4POS 5mm Solder RA Thru-Hole 24A
Conn PC Terminal Block F 4 POS 5mm Solder RA Thru-Hole 24A
得捷:
TERM BLK 4POS SIDE ENTRY 5MM PCB
欧时:
PCB terminal block
艾睿:
Know that you will have strong connections between circuits when you use Phoenix Contact&s;s pc terminal block 2908485 PCB terminal block. This F connector has 4 F contacts. Its pitch is 5 mm. It has a right angle body orientation. This is a 1-row connector. It has a female type gender. It has a maximum voltage rating of 250 V. 2908485 is housed in polyamide. This device has a maximum current rating of 24 A. Its wire is 14-26 AWG. This product is 20.95 mm long, 21.25 mm tall and 15.3 mm deep. It uses the solder termination method.
Verical:
Conn PC Terminal Block F 4 POS 5mm Solder RA Thru-Hole 24A
MASTER:
PCB terminal block - nominal current: 24 A - rated voltage III/2: 400 V - nominal cross section: 2.5 mm² - pitch: 5 mm - number of positions: 4 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB connecti
Online Components:
Conn PC Terminal Block F 4 POS 5mm Solder RA Thru-Hole 24A
Electro Sonic:
PCB terminal block - nominal current: 24 A - rated voltage III/2: 400 V - nominal cross section: 2.5 mm² ...
