20020303-H031B01LF

20020303-H031B01LF图片1
20020303-H031B01LF图片2
20020303-H031B01LF图片3
20020303-H031B01LF图片4
20020303-H031B01LF概述

Amphenol FCI 20020303-H031B01LF 3 路 无熔丝端子块, 24 → 14 AWG线规格, 10A, 300 V

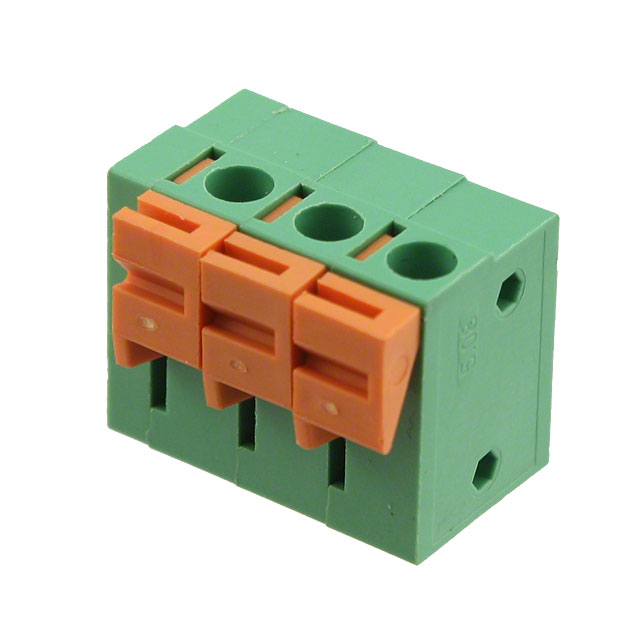

**5.08 mm Pitch FCI Terminal Block PCB Fixed, Spring Clamp Horizontal**

The FCI range of PCB Fixed, Spring Clamp Terminal Blocks combine a high performance contact with a quick and easy installlation where the stripped wires are held in place by Stainless Steel springs. The dimensions of the PCB Fixed, Spring Clamp Terminal Blocks make them End-to-End stackable. The body material of these PCB Fixed Spring Clamp Terminal Blocks has a UL94V-0 flammability rating.


欧时:
Amphenol FCI 20020303-H031B01LF 3 路 无熔丝端子块, 24 → 14 AWG线规格, 10A, 300 V


艾睿:
Conn Terminal Block 3 POS 5.08mm Solder ST Thru-Hole 10A Box


Allied Electronics:
FCI Non-Fused Trm Blk; 3 Way/Pole; 24 -14 AWG; Thermoplastic; 300 V


安富利:
Conn Terminal Block 3 POS 5.08mm Solder ST Thru-Hole 10A Box


Verical:
Conn Terminal Block 3 POS 5.08mm Solder ST Thru-Hole 10A Box


20020303-H031B01LF中文资料参数规格
技术参数

触点数 3

线规 14AWG ~ 24AWG

额定电流 10 A

排数 1

额定电流Max 10 A

工作温度Max 115 ℃

工作温度Min -40 ℃

额定电压 300 V

工作电压Max 300 VAC

封装参数

安装方式 Through Hole

外形尺寸

高度 13.3 mm

物理参数

外壳颜色 Green

颜色 Green

触点材质 Copper Alloy

工作温度 -40℃ ~ 115℃

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买20020303-H031B01LF
型号: 20020303-H031B01LF
制造商: FCI Electronics 法马通
描述:Amphenol FCI 20020303-H031B01LF 3 路 无熔丝端子块, 24 → 14 AWG线规格, 10A, 300 V
替代型号20020303-H031B01LF
型号/品牌 代替类型 替代型号对比

20020303-H031B01LF

FCI Electronics 法马通

当前型号

当前型号

HA03015000J0G

法马通

完全替代

20020303-H031B01LF和HA03015000J0G的区别
