2DM1概述
Switch Safety Interlock N.O./N.C. DPDT Bullet Nose Plunger 10A 277VAC 372.85VA 6.67N Panel Mount Quick Connect 1000000Cycles

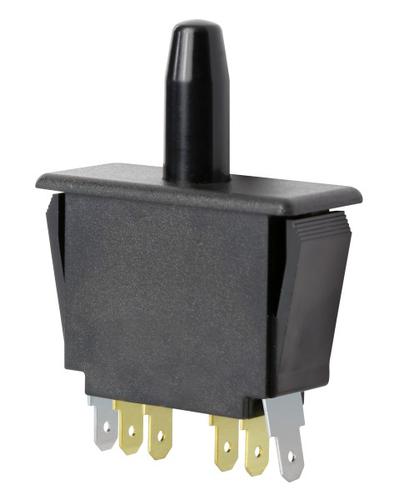

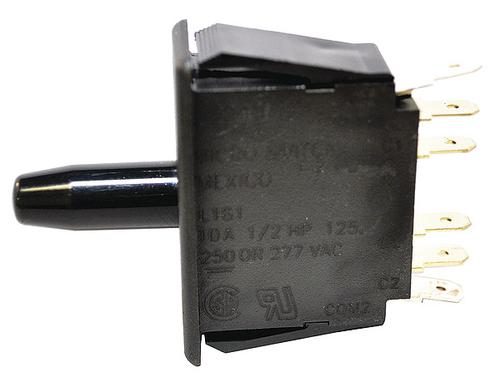

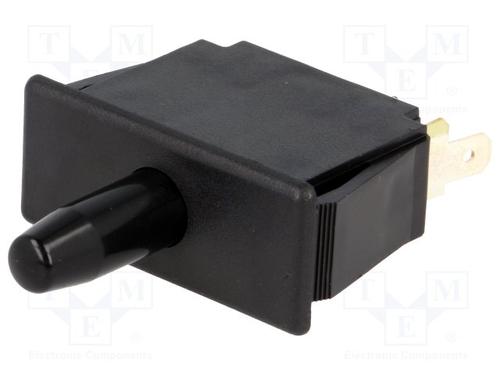

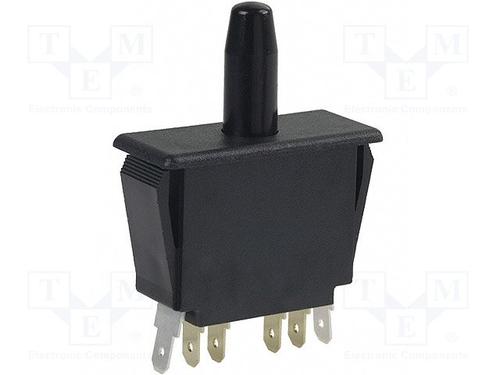

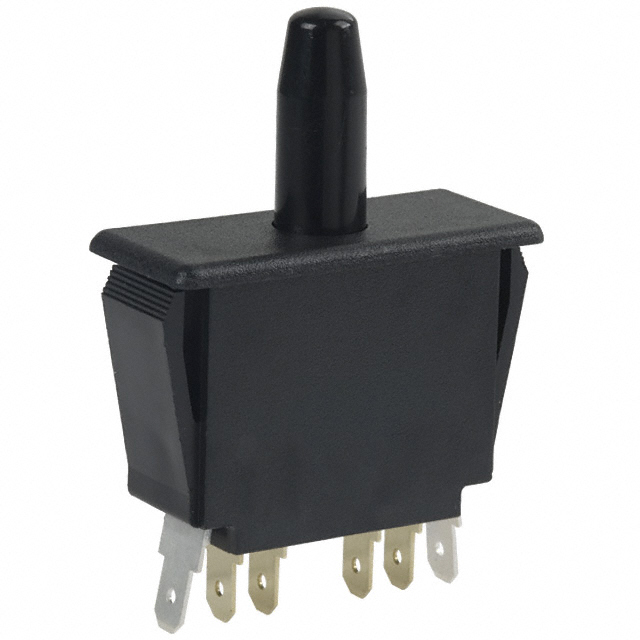

The is a double-pole double-throw DPDT snap-in panel-mount Basic Microswitch with a momentary action pin plunger actuator and quick connect/solder terminals. This MICRO SWITCH™ DM series switch is designed for a variety of applications and known for their compact, lightweight design and accurate repeatability.
- .
- DM accept a button for manual operation
- .
- Attractive, rugged snap-in panel mount design - Easy installation
- .
- Easy installation
- .
- Long life
- .
- -37 to 82°C Wide operating temperature range
2DM1中文资料参数规格
技术参数
接触器类型 Pin Plunger
额定电压AC 125 V
额定电流 10A AC
触点类型 DPDT
针脚数 2
额定电流Max 10 A
工作温度Max 82 ℃
工作温度Min -37 ℃
额定电压 277 VAC
额定电压AC Max 277 V
封装参数
安装方式 Panel
外形尺寸
高度 60.45 mm
物理参数
触点材质 Silver
工作温度 -37℃ ~ 82℃
外壳材质 Polyester
其他
产品生命周期 Active
制造应用 Security, Industrial
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
海关信息
ECCN代码 EAR99
HTS代码 8536509055
在线购买2DM1
型号： 2DM1
制造商：
Honeywell
霍尼韦尔
描述：Switch Safety Interlock N.O./N.C. DPDT Bullet Nose Plunger 10A 277VAC 372.85VA 6.67N Panel Mount Quick Connect 1000000Cycles
