HONEYWELL 21SX39-T 微动开关, SX系列, SPDT, 焊接, 7 A, 115 VAC, 28 VDC

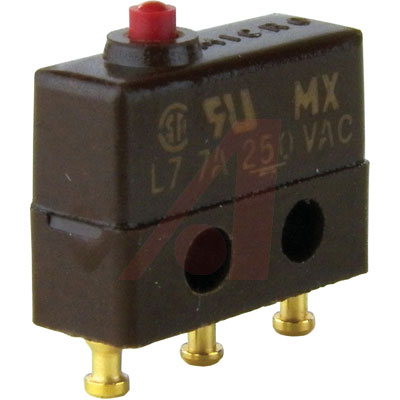

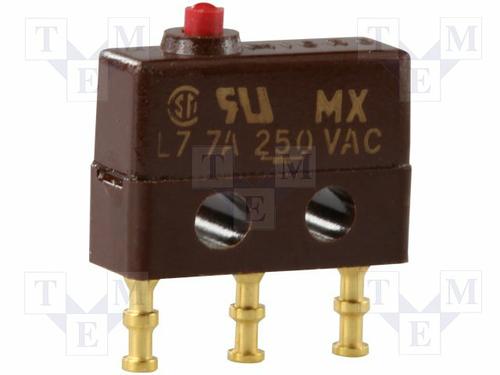

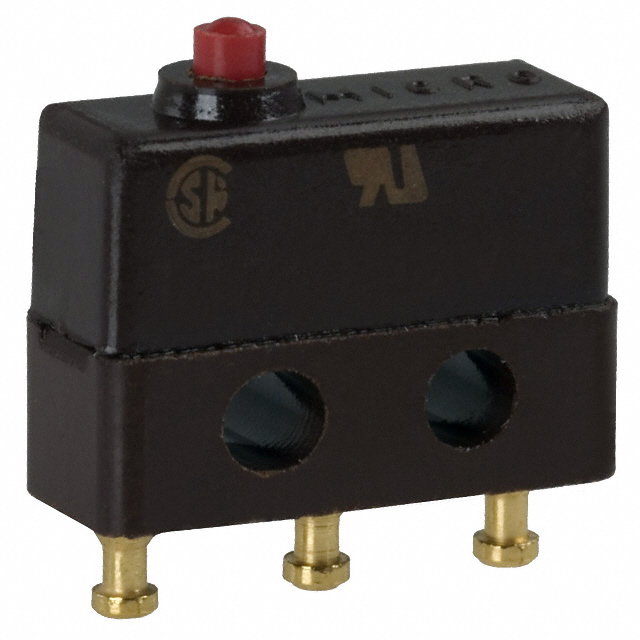

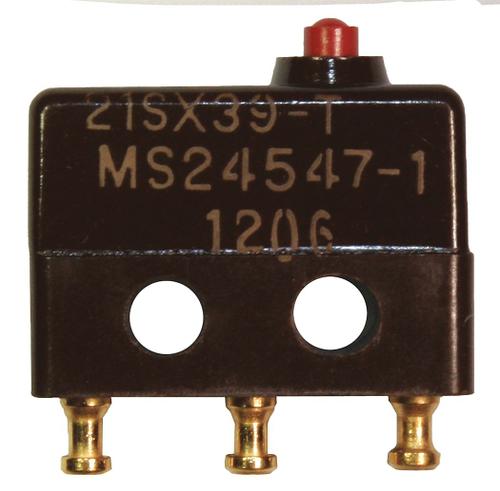

The is a single-pole double-throw SPDT sub-miniature Basic Switch with pin plunger actuator and solder terminations. The MICRO SWITCH™ SX series sub-miniature basic switch comes with general purpose phenolic housing and silver contact. It is used for simple or precision ON/OFF application needs. It is small, precision snap-action switch that is ideal where savings in space and weight are important. Elongated mounting hole for easier, more accurate mounting.
- .
- Long operating life
- .
- -55 to 85°C Operating temperature range
Do not use this product as safety or emergency stop device or in any other application where failure of the product could result in personal injury.
接触器类型 Pin Plunger
额定电流 7 A
触点类型 SPDT
针脚数 2
触点额定电流 7.00 A
额定电流Max 7 A
工作温度Max 82 ℃
工作温度Min -54 ℃
额定电压 250 VAC
安装方式 Chassis
封装 Phenolic
长度 12.7 mm
宽度 5.1 mm
高度 12.73 mm
封装 Phenolic
触点材质 Silver
工作温度 -53℃ ~ 121℃
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, 测试与测量, 传感与仪器, Test & Measurement, 医用, Medical, Computers & Computer Peripherals, Aerospace, Defence, Military, HVAC, 消费电子产品, Consumer Electronics, 军用与航空, 时钟与计时, Communications & Networking, 通信与网络, 国防, 工业, Sensing & Instrumentation, Clock & Timing, 计算机和计算机周边, 国防, 军用与航空
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536509055
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
21SX39-T Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
MS24547-1 霍尼韦尔 | 完全替代 | 21SX39-T和MS24547-1的区别 |
J7 欧姆龙 | 功能相似 | 21SX39-T和J7的区别 |
