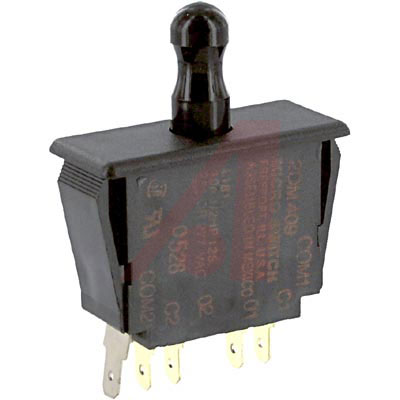

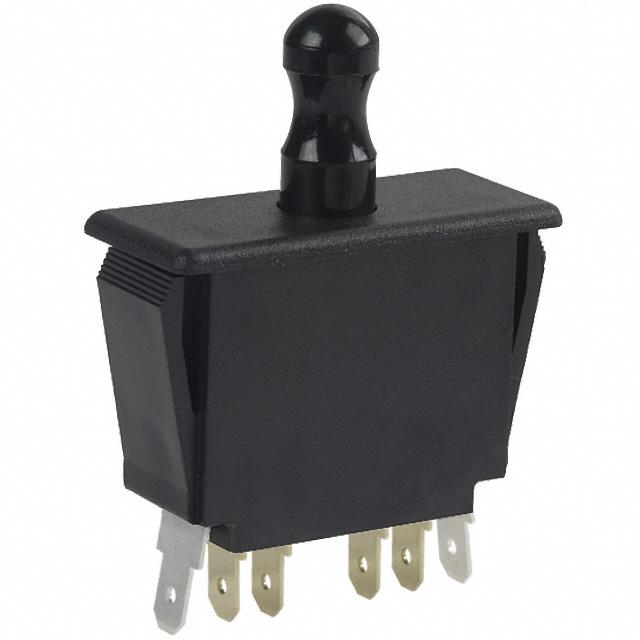

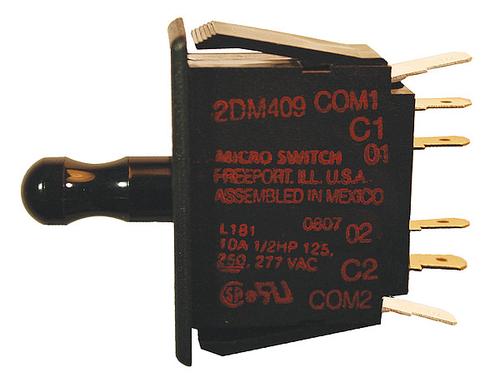

Switch Safety Interlock N.O./N.C. DPDT Finger Grip Plunger 10A 277VAC 372.85VA 6.67N Quick Connect 1000000Cycles Panel Mount
Snap-In Panel Mount Switch, 10 A Current Rating
These switches are designed to cut power when a service door or drawer is opened, helping to protect personnel and equipment. The DM Series of door interlock switches are designed with an attractive yet rugged snap-in panel mount design for easy installation.
** Features**
* Pull to Cheat Option Available Switch Resets When Door Is Closed
* DM Versions Offer Quick Connect Terminals Where the Others Offer Screw Terminals
艾睿:
This door interlock 2DM409 safety interlock switch from Honeywell is easy to set up and adds safety measures to your device. This device has a maximum current rating of 10 A @ 277VAC@CSA/UL. 2DM409 is housed in polyester. It has a DPDT configuration. This safety interlock has an operating temperature range of -37 °C to 82 °C. The 2DM409 safety interlock has a quick connect termination style. The maximum AC voltage rating is 277 VAC.
Allied Electronics:
Door Switch, Interlock, DPDT, FINGERGRIP Actuator, 10 Amps, QC TERMINATION
Chip1Stop:
Electromechanical Switch Basic Switch DPDT 10A
Verical:
Switch Safety Interlock N.O./N.C. DPDT Finger Grip Plunger 10A 277VAC 372.85VA 6.67N Panel Mount Quick Connect 1000000Cycles
Newark:
# HONEYWELL 2DM409 Microswitch, DM Series, DPDT, Quick Connect, 10 A, 277 VAC
MASTER:
MICRO SWITCH™ Basic Switches: DM Series, Snap-in Panel Mount, Double Pole Double Throw DPDT Circuitry, 10 A at 277 Vac, Finger Grip Plunger Actuator, Silver Contacts, Quick Connect Termination
Online Components:
MICRO SWITCH™ Subminiature Basic Switches: SX Series, Single Pole Double Throw SPDT, 1 A at 125 Vac, Gold-Plated Contacts, Straight ...
Electro Sonic:
MICRO SWITCH™ Basic Switches: DM Series, Snap-in Panel Mount, Double Pole Double Throw DPDT Circuitry, 10 A at 277 Vac, ...
