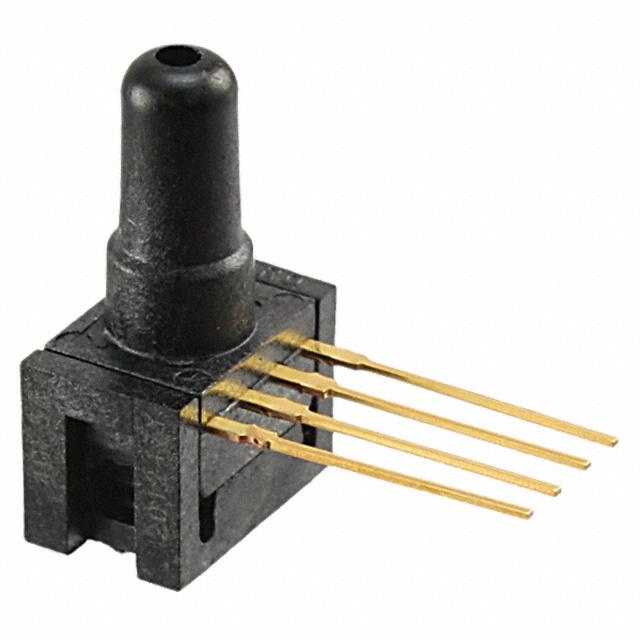

HONEYWELL 24PCDFA6A 压力传感器, 微型, 硅, 模拟, 30 psi, 绝对值, 10 VDC, 单向孔, 2 mA
This board mount pressure sensor from is designed to test the specific pressure of a physical medium, usually a type of gas or liquid, as well as any changes in pressure from direct contact. This device has a typical operating supply voltage of 10 V. This part has a temperature range of -40 °C to 85 °C. It has a response time of 1Max ms. Its operating pressure range is 2psi to 30psi, while its maximum overload pressure is 60psi.
电源电压DC 10.0 V
额定电压DC 10.0 V
输出电压 0mV ~ 330mV
供电电流 2 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±0.3 %
额定电压 10 VDC
电源电压 10V ~ 12V
安装方式 Through Hole
引脚数 4
封装 SIP-4
高度 8 mm
封装 SIP-4
重量 2 g
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 9026204000
