24PCCFA6A

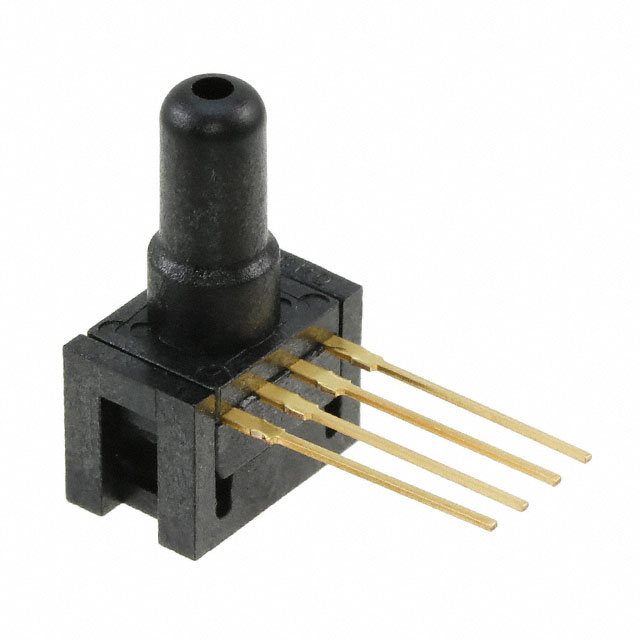

HONEYWELL 24PCCFA6A Pressure Sensor, Miniature, Silicon, Voltage, 15psi, Absolute, 10V, Straight, 2mA

The 24PC Series is uncompensated which allows flexibility in compensation and amplification circuitry design. The 24PC output signal is proportional to the input pressure. Silicon pressure sensors have four active elements within the piezo resistive bridge.

.

*Features for 24PC and 26PC: **

* Lowest Priced Sensor with Temperature Compensation and Calibration

* Can Be Used to Measure Vacuum or Positive Pressure

* Miniature Package

* Ideal for Wet/Wet Differential Applications

* Can Be Used to Measure Vacuum or Positive Pressure **Specifications for 24 PC:**

* Excitation: 10 to 12 VDC

* Repeatability Typ.: ±0.15% of Span

* Operating Temperature: –40° to +185°F
