26PCCFH6G

26PCCFH6G图片1
26PCCFH6G图片2
26PCCFH6G图片3
26PCCFH6G图片4
26PCCFH6G图片5
26PCCFH6G图片6
26PCCFH6G图片7
26PCCFH6G图片8
26PCCFH6G图片9
26PCCFH6G图片10
26PCCFH6G概述

Pressure Sensor 0V to 0.1V 0psi to 15psi Gage 4Pin

复合 压力 ±15PSI(±103.42kPa) 公型 - M5 0mV ~ 100mV(10V) 4-SIP 模块


得捷:
SENSOR 15PSIC M5 0.1V


立创商城:
26PCCFH6G


艾睿:
Pressure Sensor 0V to 0.1V 0psi to 15psi Gage 4-Pin


Chip1Stop:
Pressure Sensor 0V to 0.1V 0psi to 15psi Gage 4-Pin


TME:
Sensor: pressure; Range: ±15 psi; gage; Output conf: analogue


Verical:
Pressure Sensor 0V to 0.1V 0psi to 15psi Gage 4-Pin


MASTER:
Honeywell Miniature Low Pressure Sensors: 26PC Series, Compensated/Unamplified, 15 psi Pressure Range, Fluorosilicone Seal, M5 Thread Port, 1 x 4 SIP, 15,2 mm [0.60 in] Termination, Normal Polarity Output, Gage Pressure Measurement Type


Powell:
Sensors, Pressure Transducers, Piezoresistive Silicon


Online Components:
Pressure Sensor 0V to 0.1V 0psi to 15psi Gage 4-Pin


26PCCFH6G中文资料参数规格
技术参数

输出电压 0V ~ 0.1V

工作温度Max 85 ℃

工作温度Min -40 ℃

精度 ±0.5 %

电源电压 2.5V ~ 16V

电源电压Max 16 VDC

封装参数

安装方式 Through Hole

引脚数 4

封装 SIP-4

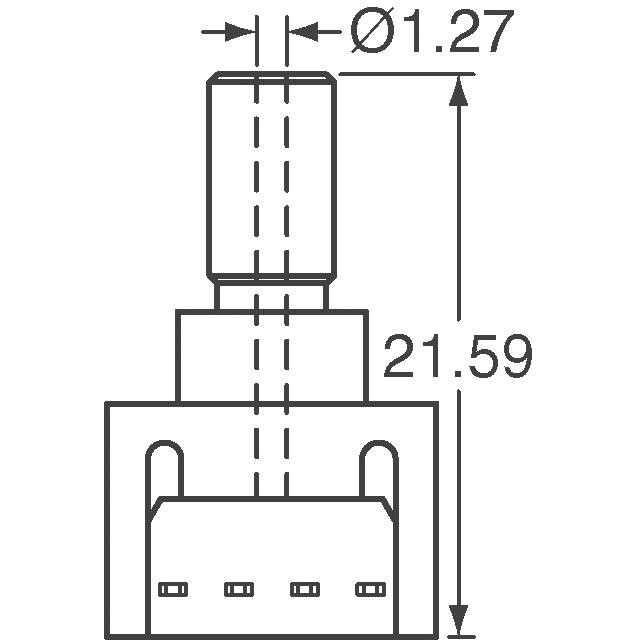

外形尺寸

高度 21.6 mm

封装 SIP-4

物理参数

重量 2 g

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 板式安装

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 9026204000

数据手册

在线购买26PCCFH6G
型号: 26PCCFH6G
描述:Pressure Sensor 0V to 0.1V 0psi to 15psi Gage 4Pin
