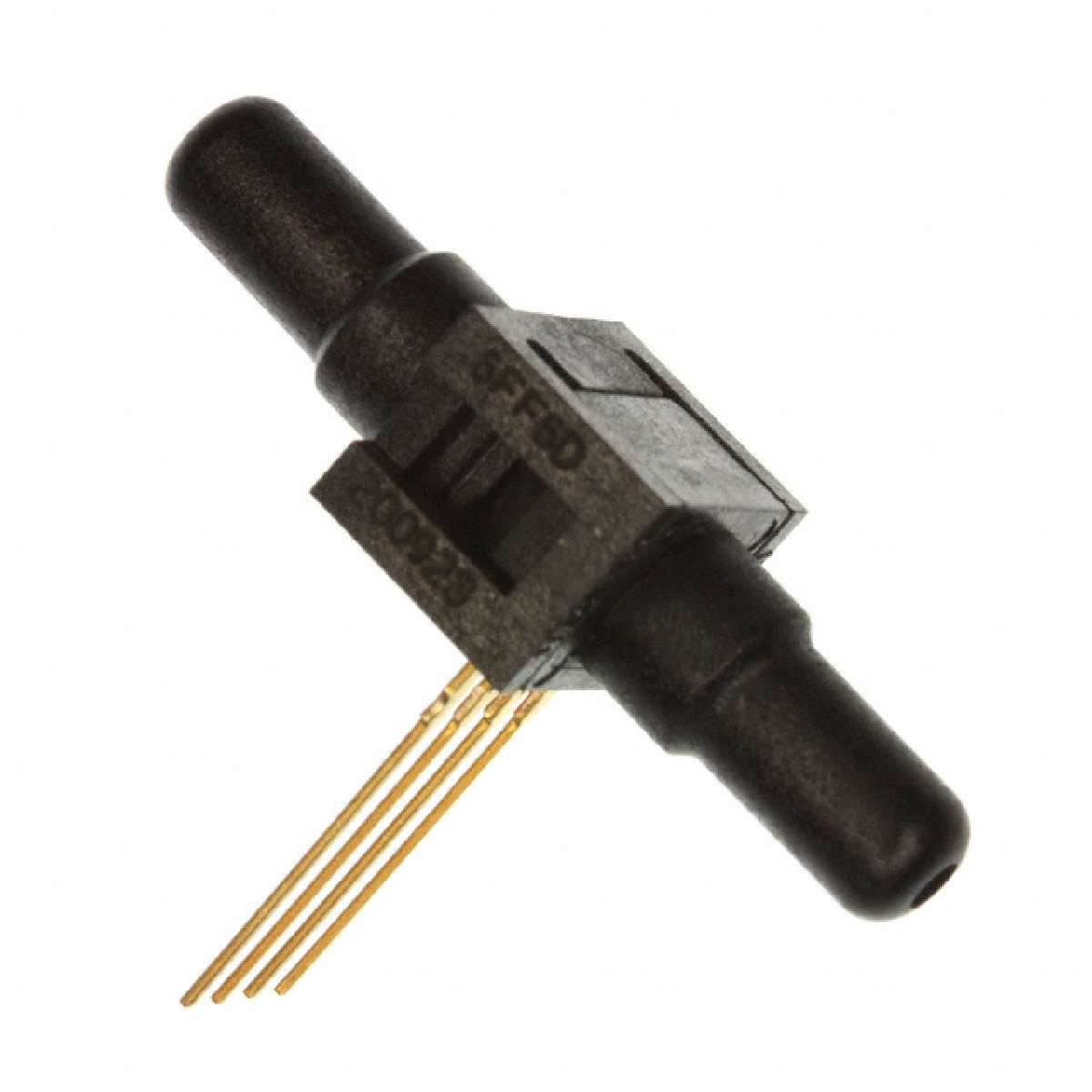

Honeywell Miniature Low Pressure Sensors: 26PC Series, Compensated/Unamplified, 100psi Pressure Range, Fluorosilicone Seal, Straight Port, 1 x 4 SIP, 15,2mm [0.6in] Termination, Normal Polarity Output, Differential Pressure Measurement Type
Use this board mount pressure sensor from to ensure that your circuit board is protected from dangerous gas or liquid pressure changes. It has a voltage of 0 to 0.1 V. This device has a typical operating supply voltage of 10 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a response time of 1Max ms. Its operating pressure range is 0psi to 100psi, while its maximum overload pressure is 200psi.
额定电压DC 10.0 V
输出电压 0V ~ 0.1V
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±0.2 %
额定电压 10 VDC
电源电压 2.5V ~ 16V
安装方式 Through Hole
引脚数 4
封装 SIP-4
高度 21.8 mm
封装 SIP-4
重量 2 g
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 板式安装
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 9026204000
