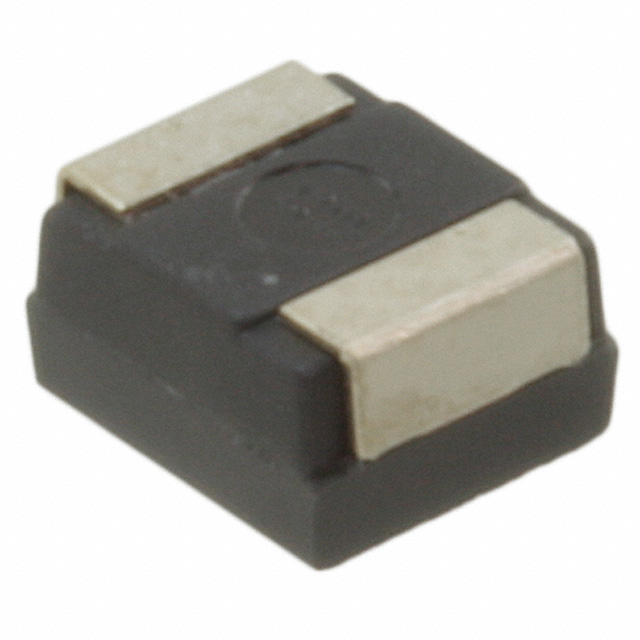

PANASONIC ELECTRONIC COMPONENTS 2TPE330MAFB 表面贴装钽电容, TPE系列, 330 µF, 1411 [3528 公制], 0.015 ohm, 2 V
钽器
得捷:
CAP TANT POLY 330UF 2V 1411
艾睿:
This 2TPE330MAFB capacitor from Panasonic has a high permittivity constant because it is made from tantalum polymer, which can be applied to filter out high frequencies. It can withstand a voltage of 2 VDC. It has 2 terminals. Its capacitance value is 330uF. Its leakage current is 132 μA. This product is 3.5 mm long, 1.9 mm tall and 2.8 mm deep. This polymer electrolyte has a minimum operating temperature of -55 °C and a maximum of 105 °C.
安富利:
Cap Tant Solid 330uF 2V B2 CASE 20% 3.5 X 2.8 X 1.9mm SMD 3528,B2 0.015 Ohm 105°C Embossed T/R
Verical:
Cap Tant Polymer 330uF 2VDC B2 CASE 20% 3.5 X 2.8 X 1.9mm SMD 3528 0.015 Ohm 105C T/R
Win Source:
CAP TANT POLY 330UF 2V 1411
额定电压DC 2.00 V
电容 330 µF
等效串联电阻ESR 15 mΩ
容差 ±20 %
工作温度Max 105 ℃
工作温度Min -55 ℃
精度 ±20 %
额定电压 2 V
安装方式 Surface Mount
封装 3528
长度 3.5 mm
宽度 2.8 mm
高度 1.9 mm
封装 3528
工作温度 -55℃ ~ 105℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
寿命(小时) 1000h @105℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
