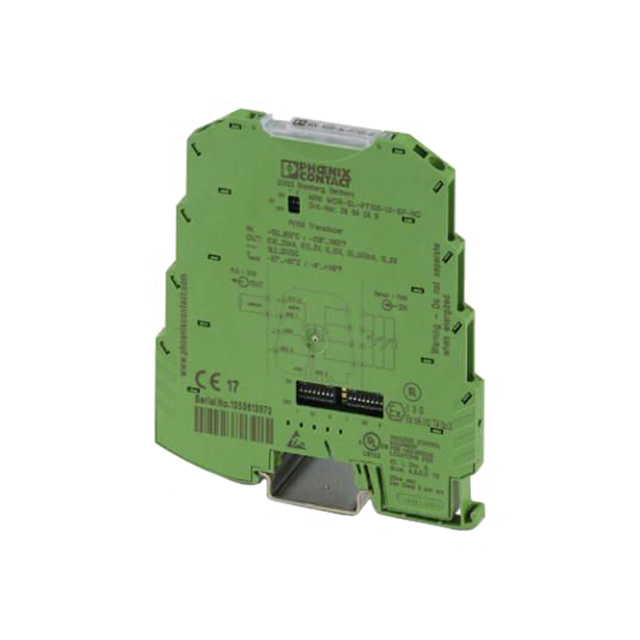

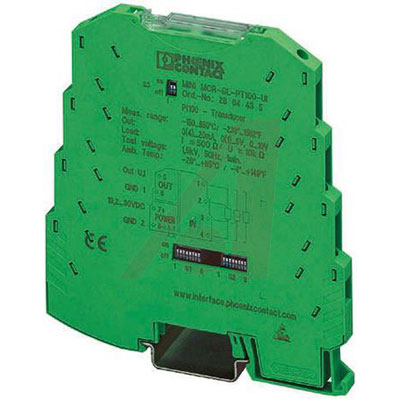

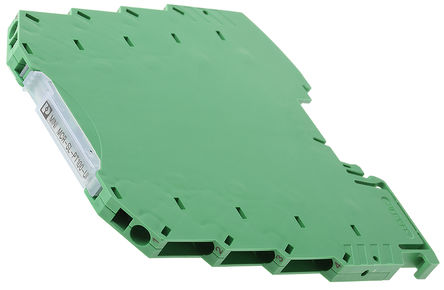

型号： 2864286

制造商： Phoenix 菲尼克斯

描述：MINI MCR - 变换器，用于 Pt100 和热电偶 用于 Pt100 或热电偶 测量范围和输出信号可配置 3 路隔离 诊断 LED，用于分析故障 可通过馈通端子和安装导轨总线连接器（库存号 489-2825）供电 螺钉或弹簧加载连接器 总宽度 6.2mm **Pt100 input** |   ---|--- Input signal: | Pt100 with 2-, 3- or 4-wire connection Temperature range: | -150°C to +850°C Measuring span: | min 50 K Sensor power supply: | 1 mA constant **Thermocouple input** |   Input signal: | Types J and K Temperature range: | -150°C to +1200°C type J   | -150°C to +1350°C type K Measuring span | min 50 K **Output** |   Current output signal: | 0 → 20 mA, 4 → 20 mA, 20 to 0 mA, 20 to 4 mA Load RB: | Voltage output signal: | 0 to→ 5 V; 1 to 5 V, 0 to→ 10 V, 10 to 0 V Load RB: | >10 kΩ **General data** |   Supply voltage: | 19.2 → 30 Vdc Power consumption: | Power consumption: | Connection type: | Screw or spring-loaded connector Protection rating: | IP20 Dimensions H x W x D: | 93.1 x 6.2 x 102.5 mm Ambient temperature: | -20 °C → +65 °C Cross-reference to manufacturer"s part number --- Stock no. | **Manuf. Part no.** 489-
