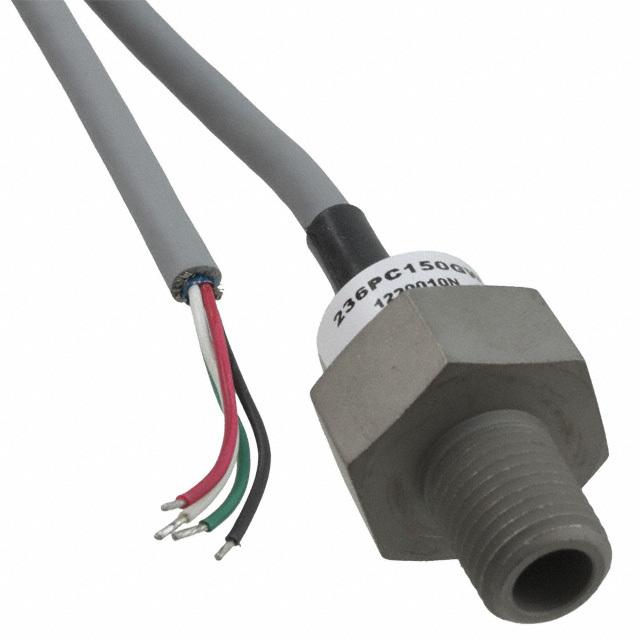

236PC100GW概述
Pressure Sensor -100psi to 100psi Gage 4Pin
"s industrial pressure sensor lets you generate force-related measurements in many heavy-duty applications. This device has a typical operating supply voltage of 10 V. This part has a minimum operating temperature of -30 °C and a maximum of 70 °C. It has a response time of 1 ms. Its operating pressure range is -100psi to 100psi, while its maximum overload pressure is 225psi.
236PC100GW中文资料参数规格
技术参数
电源电压DC 16.0V max
额定电压DC 16.0 V
输出电压 0mV ~ 100mV
工作温度Max 70 ℃
工作温度Min -30 ℃
精度 ±2.5 %
额定电压 10 VDC
电源电压 10V ~ 16V
封装参数
引脚数 4
封装 100
外形尺寸
长度 29.33 mm
宽度 25.4 mm
高度 40.64 mm
封装 100
物理参数
工作温度 -30℃ ~ 70℃
其他
产品生命周期 Not Recommended for New Design
包装方式 Tape & Reel TR
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
海关信息
HTS代码 9026204000
