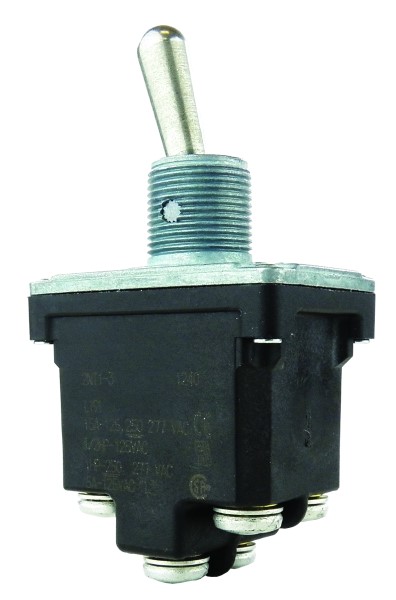

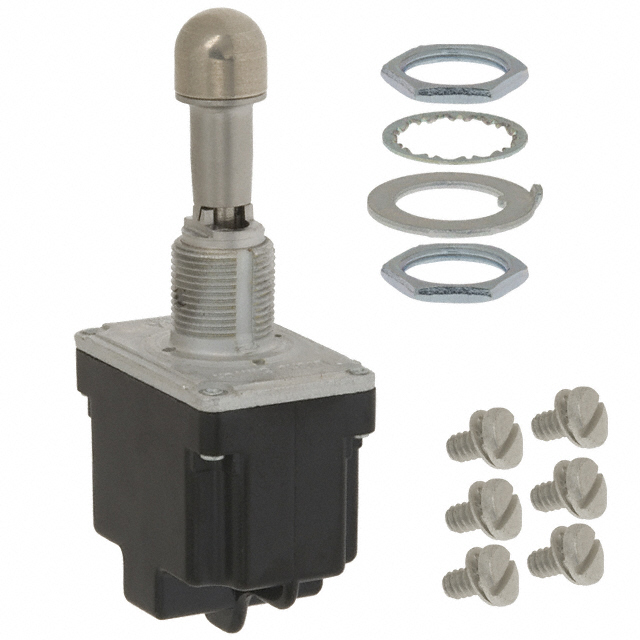

HONEYWELL 2NT1-5 拨动开关
"s 61/62 NT Series toggle switches simplify installation and enhance panel appearance while providing a broad range of options for circuitry, sealing, size and style. These rugged, cost-effective switches were originally designed to eliminate the need for behind-panel hardware, to provide uniform panel height, and to provide a unique, universal cover seal, all while providing reliable performance.
NT Series toggle switches from Honeywell feature:
* A raised panel stand-off option for consistent panel height
* An Easy-Start bushing to ensure proper alignment
* A panel-to-cover O-ring seal for increased protection
* Quality at a competitive price
接触器类型 Standard
额定电压AC 125 V
额定电流 10 A
方向 Vertical
触点类型 DPDT
针脚数 3
额定电流Max 18A @28VDC
工作温度Max 71 ℃
工作温度Min -40 ℃
额定电压 115 VAC
安装方式 Panel, Screw Terminals
长度 33.4 mm
高度 63.6 mm
触点材质 Silver Alloy
工作温度 -40℃ ~ 71℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
