互动式目录替换目录页 Interactive Catalog Replaces Catalog Pages

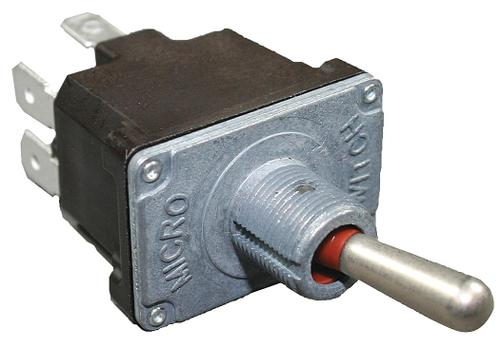

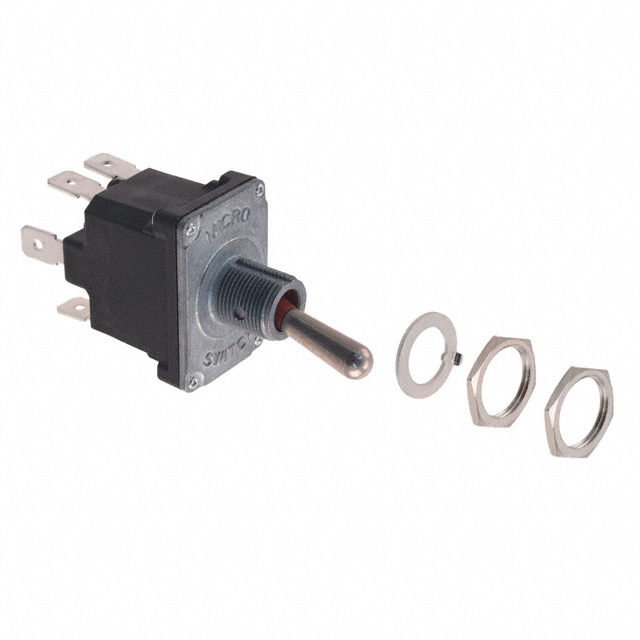

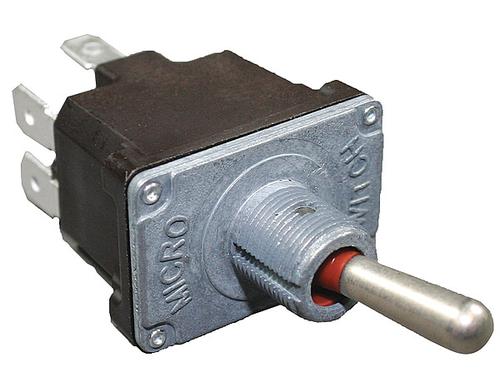

MICRO SWITCH™ Toggle Switches: NT Series, Single Pole Double Throw SPDT, 3 Position Mom. On - Off - Mom. On, Quick Connect Terminal, Standard Lever
Product Highlights
Completely sealed switching chamber
NEMA 3, 3R, 4, and 13
UL recognized, File E12252, Vol. 1, Section 44
CSA certified, File LR4442
CE approved
Potential Applications:
Aerial lifts, scissor lifts, truck mounted tele-handlers, and cranes
Construction equipment
Agriculture equipment
Material-handling equipment
Factory-floor control units
Machine tool equipment manufacturers
额定电压AC 125 V
额定电流 15A AC
触点类型 DPDT
额定电流Max 20 A
工作温度Max 71 ℃
工作温度Min -40 ℃
额定电压DC Max 250 V
额定电压AC Max 277 V
安装方式 Panel, Screw-In
长度 33.4 mm
宽度 22.6 mm
高度 63.6 mm
触点材质 Silver Alloy
工作温度 -40℃ ~ 71℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
