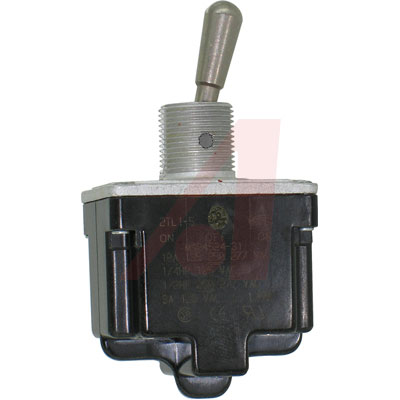

2TL1-5图片5

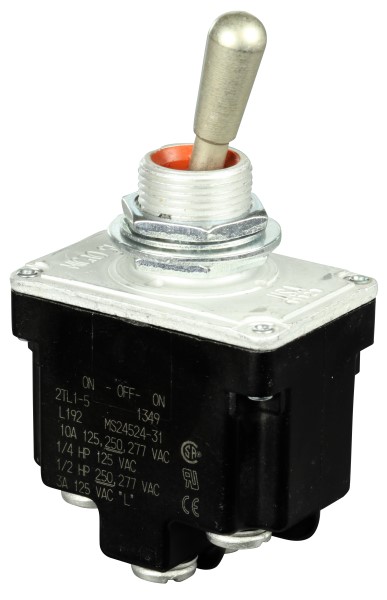

2TL1-5图片6
2TL1-5图片7
2TL1-5图片8

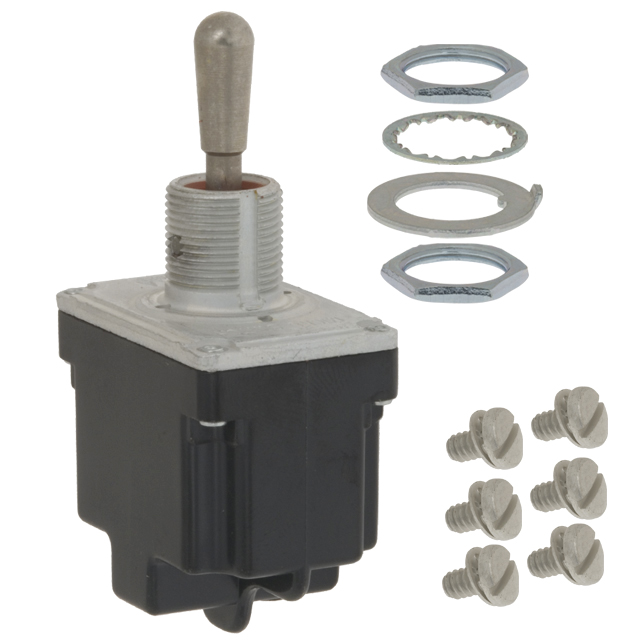

2TL1-5图片9
2TL1-5图片10
2TL1-5概述

HONEYWELL  2TL1-5  拨动开关

"s low-energy TL Series toggle switches were introduced to give designers the option of gold-plated contacts for switching “non-arching” loads. A range of circuitry, sealing levels and sizes provide even more options to maximize flexibility and enhance performance. This popular product line is UL recognized, CSA certified and CE approved as well as customer lauded.

TL toggle switches from Honeywell feature:

* Silver and/or gold-plated contacts for increased application flexibility

* High strength for durability in tough conditions

* Temperature resistant materials to enhance performance in challenging environments

* Non-tracking case material

* Quality at a competitive price

2TL1-5中文资料参数规格
技术参数

接触器类型 Standard

额定电流 15 A

方向 Vertical

触点类型 DPDT

针脚数 3

额定电流Max 18A @28VDC

工作温度Max 71 ℃

工作温度Min -65 ℃

额定电压 125 VAC

额定电压DC Max 250 V

封装参数

安装方式 Panel, Screw Terminals

外形尺寸

长度 33.5 mm

高度 29.46 mm

物理参数

触点材质 Silver Cadmium Oxide

工作温度 -65℃ ~ 71℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

军工级 Yes

海关信息

ECCN代码 EAR99

HTS代码 8536509065

数据手册

在线购买2TL1-5
型号: 2TL1-5
描述:HONEYWELL  2TL1-5  拨动开关
替代型号2TL1-5
型号/品牌 代替类型 替代型号对比

2TL1-5

Honeywell 霍尼韦尔

当前型号

当前型号

8501K3

Labinal

功能相似

2TL1-5和8501K3的区别
