23AC2

HONEYWELL  23AC2  安全连锁开关

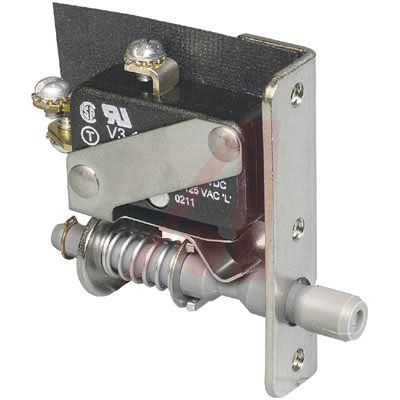

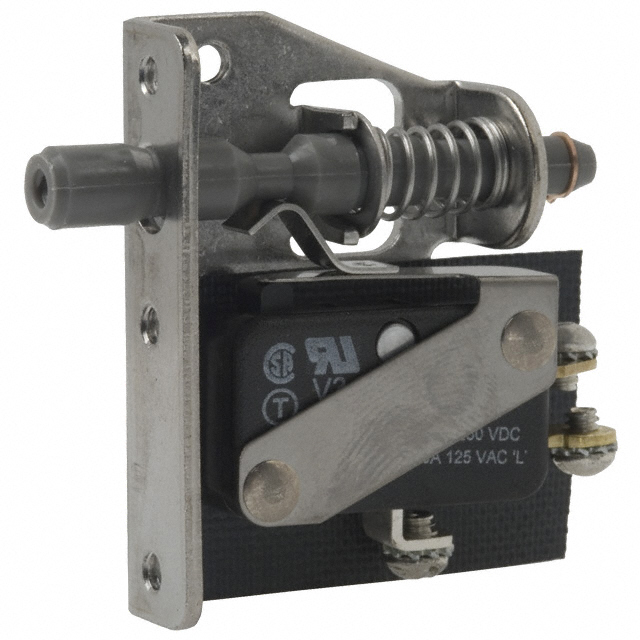

AC Series Door Switch, 15 A Current Rating

These switches are designed to cut power when a service door or drawer is opened, helping to protect personnel and equipment. The DM Series of door interlock switches are designed with an attractive yet rugged snap-in panel mount design for easy installation.

** Features**

* Pull to Cheat Option Available Switch Resets When Door Is Closed

* DM Versions Offer Quick Connect Terminals Where the Others Offer Screw Terminals

e络盟:
安全连锁开关

艾睿:
This door interlock 23AC2 safety interlock switch from Honeywell is easy to operate and allows you to add safety measures to your device. It has a SPDT configuration. This device has a maximum current rating of 15 A @ 250VAC. 23AC2 is housed in stainless steel. This safety interlock has an operating temperature range of -53 °C to 82 °C. The 23AC2 safety interlock has a screw termination style. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 250 VDC.

Allied Electronics:
Door Switch, Interlock, SPDT, Rod Actuator, 15 Amps, Screw Terminals

Chip1Stop:
Electromechanical Switch Door Switch SPDT 15A

Verical:
Switch Safety Interlock N.O./N.C. SPDT Rod 15A 250VAC 250VDC 248.57VA Screw Mount Screw

Newark:
# HONEYWELL  23AC2  Safety Interlock Switch, AC Series, SPDT, Screw, 250 V, 15 A

MASTER:
MICRO SWITCH™ Basic Switches: AC Series, Door Switch, Single Pole Double Throw SPDT, 15 A at 250 Vac, Rod Actuator, Silver Contacts, Screw Termination

Online Components:
MICRO SWITCH™ Subminiature Basic Switches: SM Series, Single Pole Double Throw SPDT, 4 A at 250 Vac, Straight Lever Actuator, ...

Electro Sonic:
MICRO SWITCH™ Basic Switches: AC Series, Door Switch, Single Pole Double Throw SPDT, 15 A at 250 Vac, Rod Actuator, ...
