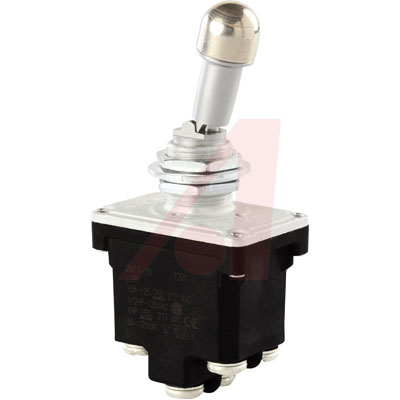

2NT1-3D图片4
2NT1-3D图片5
2NT1-3D图片6

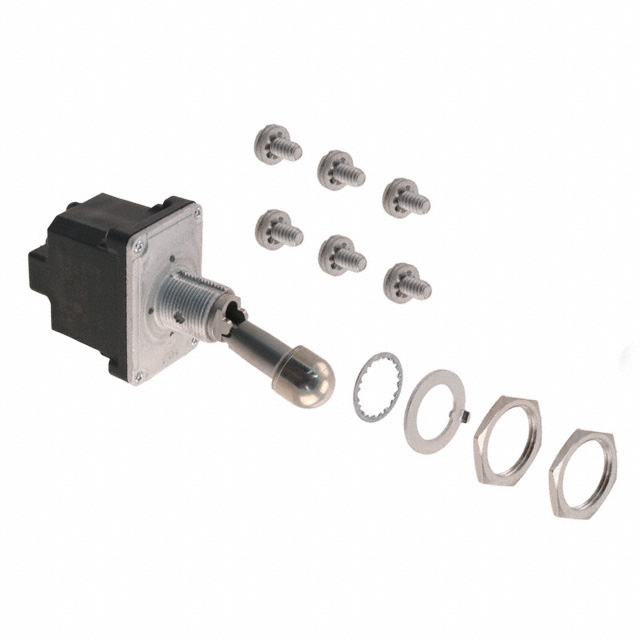

2NT1-3D图片7
2NT1-3D图片8
2NT1-3D概述

Switch Toggle ON ON DPDT Locking Lever Screw 20A 277VAC 250VDC 745.7VA Panel Mount with Threads

"s NT Series toggle switches simplify installation and enhance panel appearance while providing a broad range of options for circuitry, sealing, size and style. These rugged, cost-effective switches were originally designed to eliminate the need for behind-panel hardware, to provide uniform panel height, and to provide a unique, universal cover seal, all while providing reliable performance.

NT Series toggle switches from Honeywell feature:

* A raised panel stand-off option for consistent panel height

* An Easy-Start bushing to ensure proper alignment

* A panel-to-cover O-ring seal for increased protection

* Quality at a competitive price

2NT1-3D中文资料参数规格
技术参数

额定电压DC 250 V

额定电压AC 277 V

额定电流 15 A

触点类型 DPDT

额定电流Max 20A @28VDC

额定电压DC Max 250 V

额定电压AC Max 277 V

封装参数

安装方式 Screw, Panel

外形尺寸

高度 75.18 mm

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536509065

数据手册

在线购买2NT1-3D
型号: 2NT1-3D
描述:Switch Toggle ON ON DPDT Locking Lever Screw 20A 277VAC 250VDC 745.7VA Panel Mount with Threads
