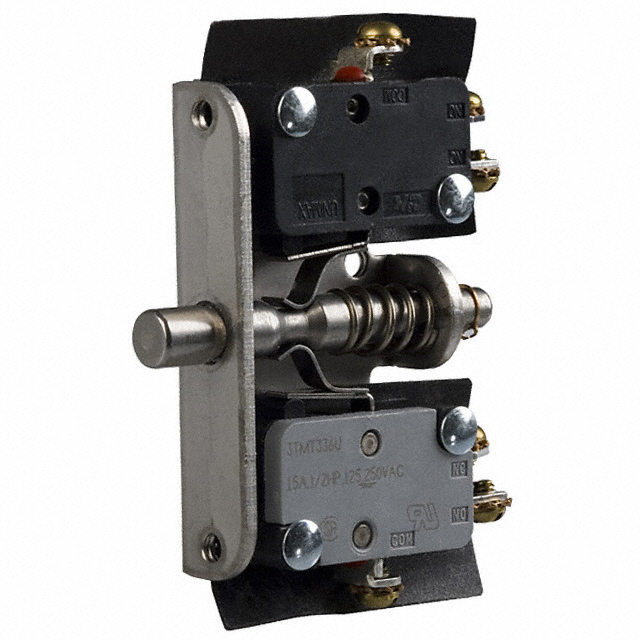

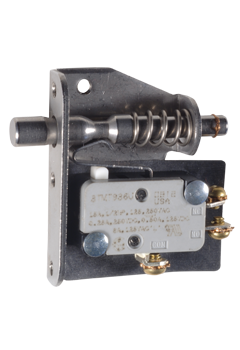

Switch Safety Interlock N.O./N.C. DPDT Plunger 15A 250VAC 250VDC 372.85VA Screw Screw Mount
Door Interlock Switch
立创商城:
23TL604
艾睿:
Implement safety measures in your device by monitoring the position of the guard with this door interlock 23TL604 safety interlock switch from C&a;K Components. It has a DPDT configuration. This device has a maximum current rating of 15 A @ 250VAC. 23TL604 is housed in thermoplastic|general purpose phenolic. This safety interlock has a minimum operating temperature of -55 °C and a maximum of 150 °C. The 23TL604 safety interlock has a screw termination style. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 250 VDC.
Allied Electronics:
Switch; Door Interlock; SPDT x 2; ON-MOM; Push-Pull; 15A; 125VAC/DC; Screw Term; Tapped
安富利:
Electromechanical Switch Door Interlock Switch SPDT 15A
Chip1Stop:
Switch Safety Interlock N.O./N.C. DPDT Plunger 15A 250VAC 250VDC 372.85VA Screw Screw Mount
Verical:
Switch Safety Interlock N.O./N.C. DPDT Plunger 15A 250VAC 250VDC 372.85VA Screw Mount Screw
Newark:
# C & K COMPONENTS 23TL604 Snap
MASTER:
Door Interlock Switch
Online Components:
Door Interlock Switch
Electro Sonic:
Door Interlock Switch
额定电压DC 125 V
接触器类型 Button
额定电压AC 125 V
额定电流 15A AC, 500mA DC
触点类型 SPDT
额定电流Max 15A @250VAC
额定功率Max 372.85 VA
工作温度Max 150 ℃
工作温度Min -55 ℃
额定电压DC Max 250 V
额定电压AC Max 250 V
安装方式 Quick Connect
封装 -
高度 66.9 mm
封装 -
触点材质 Fine Silver
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509040
