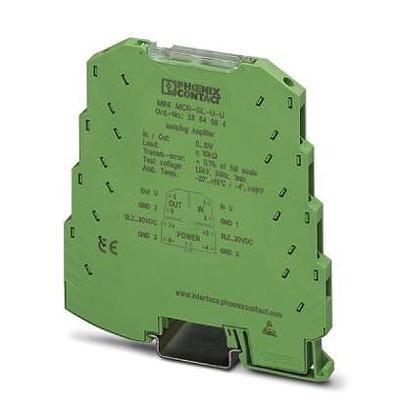

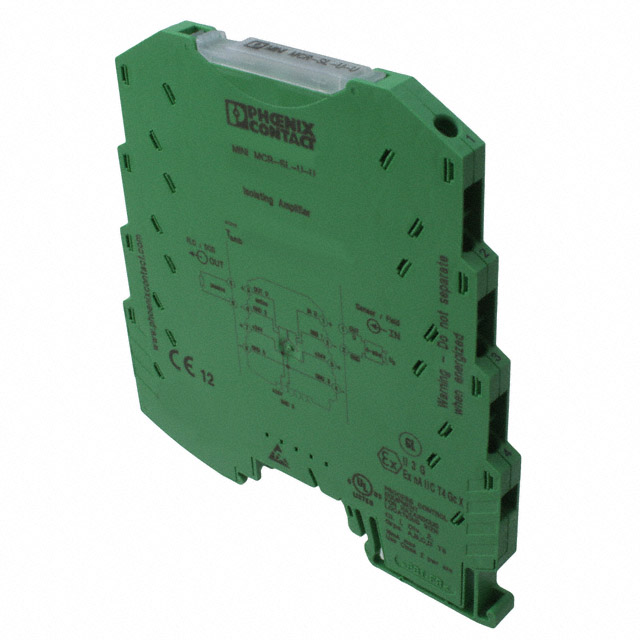

3 路电压隔离器电压隔离器可单独安装或与其它系统一起安装在 DIN 导轨上。 外壳高 102.5mm,宽 6.2mm。 性能参数与标准规格的 MCR 产品类似。输入和输出,0-10V,+/- 10V Technical Specification --- Input & Output voltage | 0 - 10V, ±10V Input impedance | 100 kΩ Maximum input | 30 V Maximum outut | 12 V Output load | 10kΩ or greater Supply voltage | 19.2 → 30 Vdc Isolation voltage | 1.5 kV AC 50Hz, 1min Operating temperature | -20 → 65°C Connections | Screw terminals Dimensions WxDxH | 6.2 x 93 x 103 mm ### Phoenix Contact DIN 卡轨安装外壳材料:聚酰胺 - 所有类型
Measuring temperatures, converting or isolating signals — No problem with the new analog range from Contact. MINI Analog provides state-of-the-art technology for extreme flexibility and maximum ease of installation and configuration.
The devices are supplied with power by simply plugging them onto the power supply bridge on the DIN rail. In addition, individual devices can be easily replaced during operation without the power being interrupted to the other devices.
**Features:**
* Test Isolation Voltage 1.5 kVAC
* Supply Voltage: 19.2 to 30 VDC
* Temperature Range: –20°C to +60°C
* Transmission Error < 0.2%
* Screw or Spring-Cage Connection System
* Power Supply Bridge for Simple Handling
* 6 mm Width
