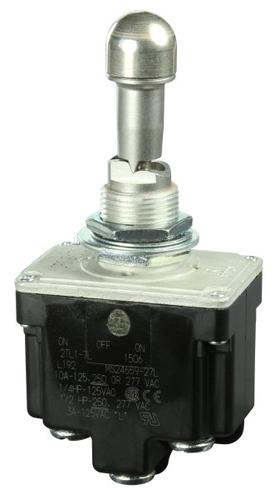

Switch Toggle ON OFF ON DPDT Locking Lever Screw 18A 277VAC 250VDC 372.85VA Panel Mount with Threads
MICRO SWITCH™ Toggle Switches: TL Series, Double Pole Double Throw DPDT 3 Position, Special Circuitry On - On - On, Pan Head Terminal Screws And Spring Lock Washers Furnished Unassembled, 5/16-32 UNEF Threaded Locking Lever Without Lever Cap Locked Out Of Extreme Position, Opposite Keyway
Product Highlights
Qualified to MIL-S-3950
Environment-proof sealing
1,2, and 4 pole circuitry
Standard and pull-to-unlock levers
2 and 3 position, maintained and momentary toggle action
Temperature range: -85 F to +160 F
Completely sealed switching chamber
Step-design case provides added space between terminals to help prevent shorting
UL recognized, CSA certified
CE approved
Potential Applications:
Industrial machinery and equipment
Military and commercial aviation
Construction equipment
Test instruments
Agricultural machinery
Process control
Medical instrumentation
