2313106

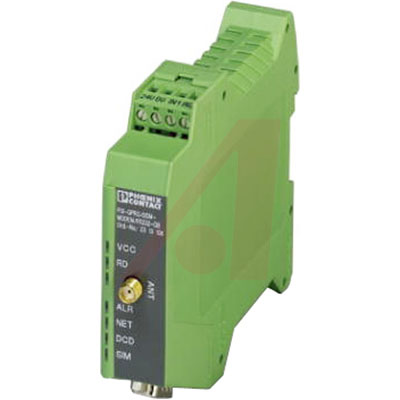

GPRS/GSM MODEM DIN RAIL 24VDC

The is an industrial GPRS/GSM Modem for mounting on EN DIN rails. It features D-SUB-9 male connector, serial asynchronous UART/NRZ, 7/8 data, 1/2 stop, 1 parity, 10/11-bit character length file format/coding and V.24 RS-232 interface in accordance with ITU-T V.28, EIA/TIA-232, DIN 66259-1 standards. It also features a software handshake, Xon/Xoff or hardware handshake RTS/CTS data flow control/protocols. The network function includes - 4 time slots for receiving data, 2 time slot for transmitting data. The PIN is saved in the modem. After a voltage interruption, there is automatic redialling into the network integrated TCP/IP stack, independent connection establishment.

.

50R Impedance SMA antenna socket

.

Class 10 and class B GPRS

.

CSD 9.6/14.4kbps GSM

.

1500V Test voltage data interfaces

.

1.5kV Test voltage data interface/power supply

.

IP20 Protection rating

.

PA V0 Green housing
