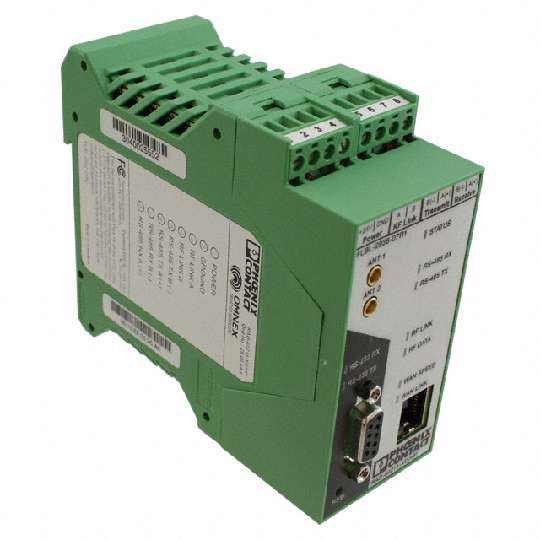

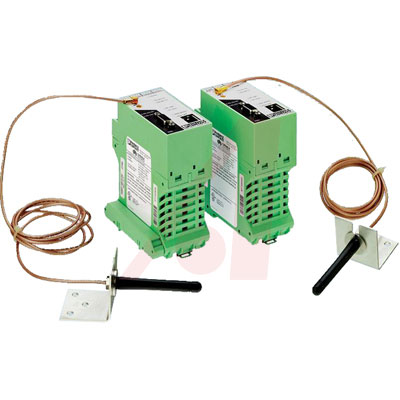

High-Power Wireless Ethernet Radio, HPWLAN, 2.4GHz, 802.11B/g WiFi, DIN Rail
The RAD-80211-XD/HP-BUS are industrial radio transceivers that conform to IEEE standards 802.11 b/g. These models allow users to configure access point, bridge or client modes for use in a wireless Ethernet network. They feature the latest high-security IEEE standard 802.11i with AES encryption and optional 802.1x authentication.
The RAD-80211-XD/HP-BUS products support TCP/IP, UDP and IP v4 protocols with all programming and radio diagnostics accessible via a simple integrated web server. The devices also feature user upgradeable firmware.
**Features:**
* 400 mW Transmission Power – Functions as an access point, client or bridge allowing the devices to work in a variety of Applications. – Supports data rates up to 54 Mbps over 2.4 GHz 802.11 b/g frequency bands. – Security features WEP, WPA, 802.11i WPA2 128-bit
AES encryption and MAC Address checking provide for a trusted connection.
* RS-232 and RS-422/485 ports allow integration of serial devices onto Ethernet network built-in device server .
* Supports mesh networking for secure routing in the event of a link failure.
* Receive antenna diversity to improve radio performance and reliability.
* Programming and network diagnostics are accessed via embedded web server and IT-friendly SNMP; no additional software needed.
* Modbus RTU/TCP compatible for process and industrial applications.
* I/O bus RAD-80211-XD/HP-BUS version only allows control of up to eight I/O expansion modules via Modbus RTU/TCP over a wireless 802.11 network.
