Snap Acting/Limit Switch, SPDT, Momentary, 0.8A, 115VDC, 22.86mm, Screw Terminal, Steel Plunger Actuator, Panel Mount
Enclosed Switches Series LS Top Plunger
The Compact LS has a long record of successful performance in industrial applications. The LS fits in many places too small for any other fully adjustable limit switch.
** Features**
* Wide Choice of Operating Heads and Actuators
* Captive Screws
** Specifications**
* Field Adjustable Rotary Motion Actuators Through 360°
* Sealing: NEMA 1, 3, 4, 6, 13
艾睿:

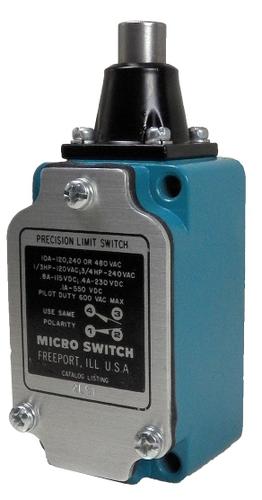

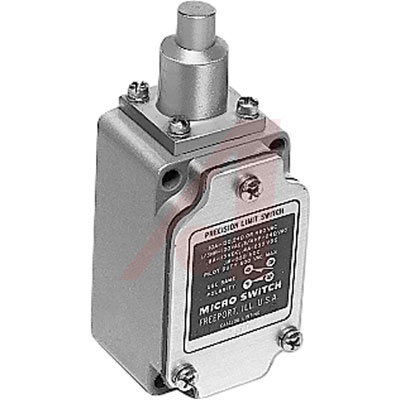

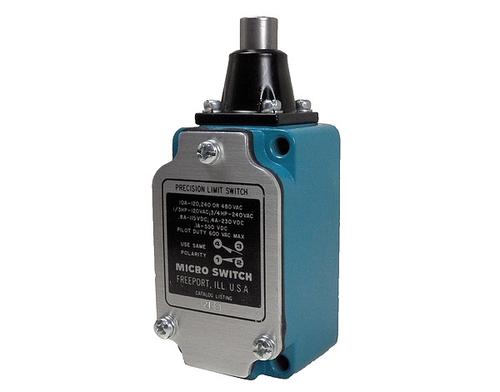

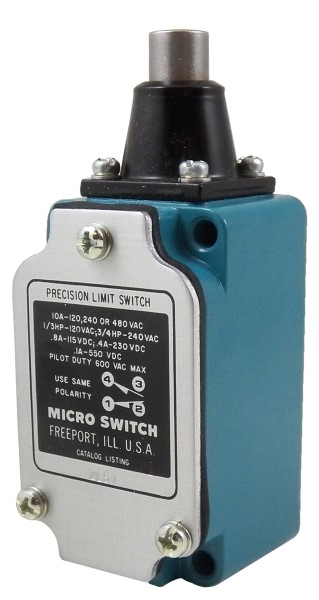

Look no further than the compact 2LS1 limit switch from Honeywell, a device that operates via the switch&s;s motion or in the presence of another object. It has a SPDT configuration. 2LS1 is housed in zinc die cast. This device has a maximum current rating of 0.8 A @ 115VDC. This limit switch has an operating temperature range of -29 °C to 71 °C. The 2LS1 limit switch has a conduit termination style. This product is 39.88 mm long, 98.93 mm tall and 40.64 mm deep. The maximum AC voltage rating is 240 VAC and the maximum DC voltage rating is 550 VDC.
Allied Electronics:
Snap Action Limit Switch, Plunger, Die Cast Zinc, NO/NC, 480V
Chip1Stop:
Switch Limit N.O./N.C. SPDT Top Plunger Conduit 0.8A 240VAC 550VDC 3/4HP 31.14N Linear Screw Mount
TME:
Limit switch; pusher; NO + NC; 10A; -29÷71°C; 31.14N
Verical:
Switch Limit N.O./N.C. SPDT Top Plunger Screw Mount 0.8A 240VAC 550VDC 3/4HP 31.14N Linear Conduit Automotive
Newark:
# HONEYWELL 2LS1 Limit Switch, Top Plunger, SPDT-1NO, SPDT-NC, 10 A, 480 V, 31.14 N
MASTER:
MICRO SWITCH™ General Purpose Limit Switches: LS Series, Epoxy-Coated Zinc Housing, Non Plug-in Body Style, SST Top Pin Plunger, Ø 9 mm [0.35 in], 1NC 1NO Single Pole Double Throw SPDT Snap Action, Double Break, 10 A 120, 240, or 480 Vac, 0.5 in - 14 NP
Online Components:
Honeywell Limit Switch 2LS1 with screw mount, top plunger actuator, 1NC 1NO SPDT Snap Action.
Electro Sonic:
MICRO SWITCH™ General Purpose Limit Switches: LS Series, Epoxy-Coated Zinc Housing, Non Plug-in Body Style, SST Top Pin Plunger, Ø ...
