201LS23

201LS23图片1

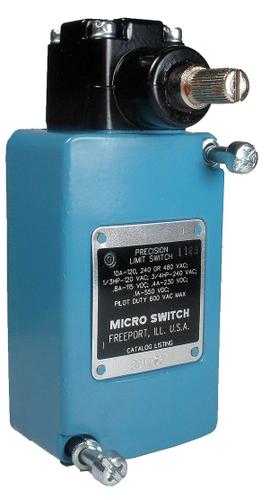

201LS23图片2

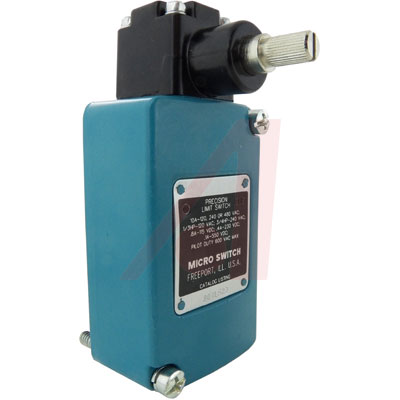

201LS23图片3

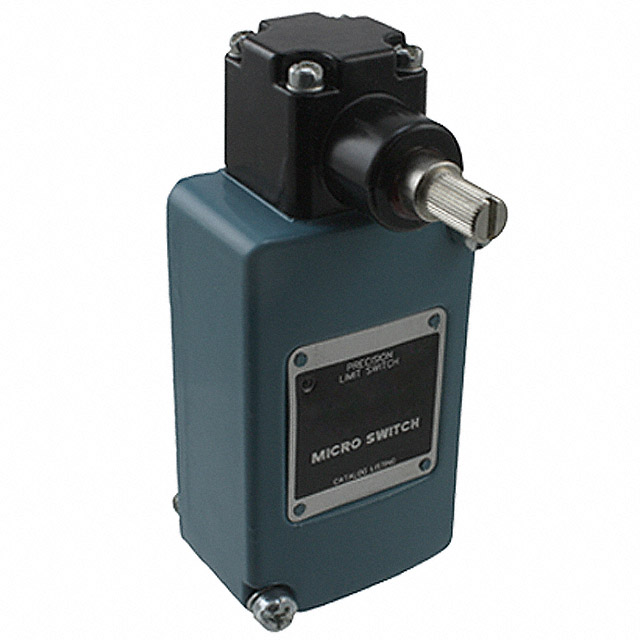

201LS23图片4
201LS23概述

Switch Limit N.O./N.C. SPDT Side Rotary Conduit 0.8A 550VDC Rotary Screw Mount

**LS Medium Duty Limit Switches**

The LS limit switch series from has a long record of successful performance in industrial applications. The LS miicro switch fits in many places too small for any other dully adjustable limit switch. The 200LS switches are the original plug-in concept for reducing downtime by making changeover simple and fast.


艾睿:
Switch Limit N.O./N.C. SPDT Side Rotary Screw Mount 10A 480VAC 550VDC Rotary Conduit Automotive


Allied Electronics:
Snap Action Limit Switch, Rotary Lever, Die Cast Zinc, NO/NC, 480V


Verical:
Switch Limit N.O./N.C. SPDT Side Rotary Screw Mount 10A 480VAC 550VDC Rotary Conduit Automotive


Newark:
# HONEYWELL  201LS23  Limit Switch, Side Rotary, SPDT, 10 A, 480 V, 0.19 N-m, LS Series


MASTER:
MICRO SWITCH™ General Purpose Limit Switches: LS Series, Epoxy-Coated Aluminum Housing, Plug-in Body Style, Side Rotary, No Lever, Low Operating Torque, 1NC 1NO Single Pole Double Throw SPDT Snap Action, Double Break, 10 A 120, 240, or 480 Vac, Plug-in,


Online Components:
Switch Limit N.O./N.C. SPDT Side Rotary Conduit 0.8A 550VDC Rotary Screw Mount


Electro Sonic:
MICRO SWITCH™ General Purpose Limit Switches: LS Series, Epoxy-Coated Aluminum Housing, Plug-in Body Style, Side Rotary, No Lever, Low Operating ...


201LS23中文资料参数规格
技术参数

接触器类型 Side Rotary

额定电流 10 A

触点类型 SPDT

额定电流Max 10A @480VAC

工作温度Max 71 ℃

工作温度Min -29 ℃

额定电压DC Max 550 V

额定电压AC Max 480 V

外形尺寸

高度 102.87 mm

物理参数

工作温度 -29℃ ~ 71℃

外壳材质 Zinc Die-Cast

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536509040

数据手册

在线购买201LS23
型号: 201LS23
描述:Switch Limit N.O./N.C. SPDT Side Rotary Conduit 0.8A 550VDC Rotary Screw Mount
