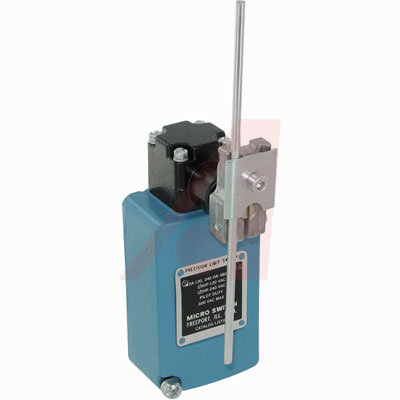

201LS47图片1

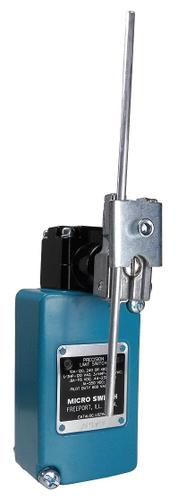

201LS47图片2
201LS47图片3
201LS47图片4
201LS47概述

Limit Switches .19N m 1.7in lb max 1NC 1NO SPDT Snap

The Compact LS has a long record of successful performance in industrial applications. The LS fits in many places too small for any other fully adjustable limit switch.

**Features**

* Wide Choice of Operating Heads and Actuators

* Captive Screws

**Specifications**

* Field Adjustable Rotary Motion Actuators Through 360°

* Sealing: NEMA 1, 3, 4, 6, 13


贸泽:
Limit Switches .19N m 1.7in lb max 1NC 1NO SPDT Snap


艾睿:
Switch Limit N.O./N.C. SPDT Side Rotary with Adjustable Rod Conduit Rotary Screw Mount


Allied Electronics:
Limit Switch, Rod Adjustable, 1NC/1NO, DPDT, Snap Action, 10 Amps, Side Rotary


Verical:
Switch Limit N.O./N.C. SPDT Side Rotary with Adjustable Rod Screw Mount Rotary Conduit Automotive


MASTER:
Switch Limit N.O./N.C. SPDT Side Rotary with Adjustable Rod Screw Mount Rotary Conduit Automotive


Online Components:
Switch Limit N.O./N.C. SPDT Side Rotary with Adjustable Rod Conduit Rotary Screw Mount


Electro Sonic:
Switch Limit N.O./N.C. SPDT Side Rotary with Adjustable Rod Screw Mount Rotary Conduit Automotive


201LS47中文资料参数规格
技术参数

额定电压DC 550 V

接触器类型 Side Rotary

额定电压AC 480 V

额定电流 10 A

触点类型 SPDT

工作温度Max 71 ℃

工作温度Min -29 ℃

封装参数

安装方式 Screw

外形尺寸

高度 228.14 mm

物理参数

工作温度 25℃ ~ 100℃

外壳材质 Zinc Die-Cast

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536509040

数据手册

在线购买201LS47
型号: 201LS47
描述:Limit Switches .19N m 1.7in lb max 1NC 1NO SPDT Snap
