2CPSA1A1A

2CPSA1A1A图片1
2CPSA1A1A图片2
2CPSA1A1A图片3
2CPSA1A1A图片4
2CPSA1A1A概述

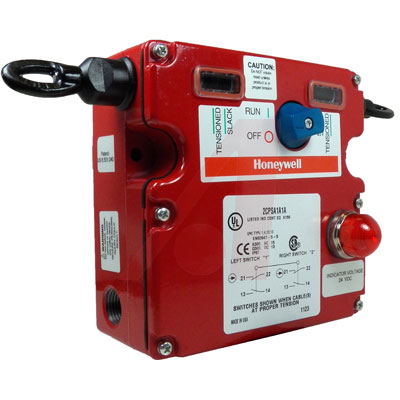

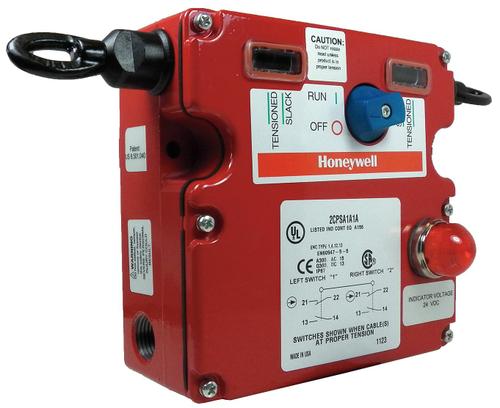

HONEYWELL 2CPSA1A1A Grabwire Switch, 152m, DPST-NO, DPST-NC, 120V, 6A, 24V, 2.8A

"s Safety Solutions Packages facilitate protective guarding plans by helping to simplify product selection and application while reducing potential interoperability issues. Electromechanical safety switches and safety control modules are bundled with detailed wiring information as a complete safety package. A comprehensive application sheet is included as a handy reference for five common safety switch/safety relay configurations.

Safety Solutions Packages from Honeywell feature:

* Simplified machine safety options offering bundled switches and control modules, along with an application sheet for circuitry wiring

* ISO compliance in accordance with the four standard injury risk categories

* Reliable performance from a trusted source for safety hard-guarding solutions

* Protective guarding choices for a variety of applications: packaging, assembly, manufacturing, printing, plastic molding equipment, and many other uses.

2CPSA1A1A中文资料参数规格
技术参数

触点类型 DPST-NO

额定电流Max 0.05 A

工作温度Max 85 ℃

工作温度Min -40 ℃

额定电压 240 VAC

额定电压DC Max 60 V

额定电压AC Max 250 V

外形尺寸

高度 165.1 mm

物理参数

触点材质 Gold

工作温度 -40℃ ~ 85℃

外壳材质 Zinc Die-Cast

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536509055

数据手册

在线购买2CPSA1A1A
型号: 2CPSA1A1A
描述:HONEYWELL 2CPSA1A1A Grabwire Switch, 152m, DPST-NO, DPST-NC, 120V, 6A, 24V, 2.8A
