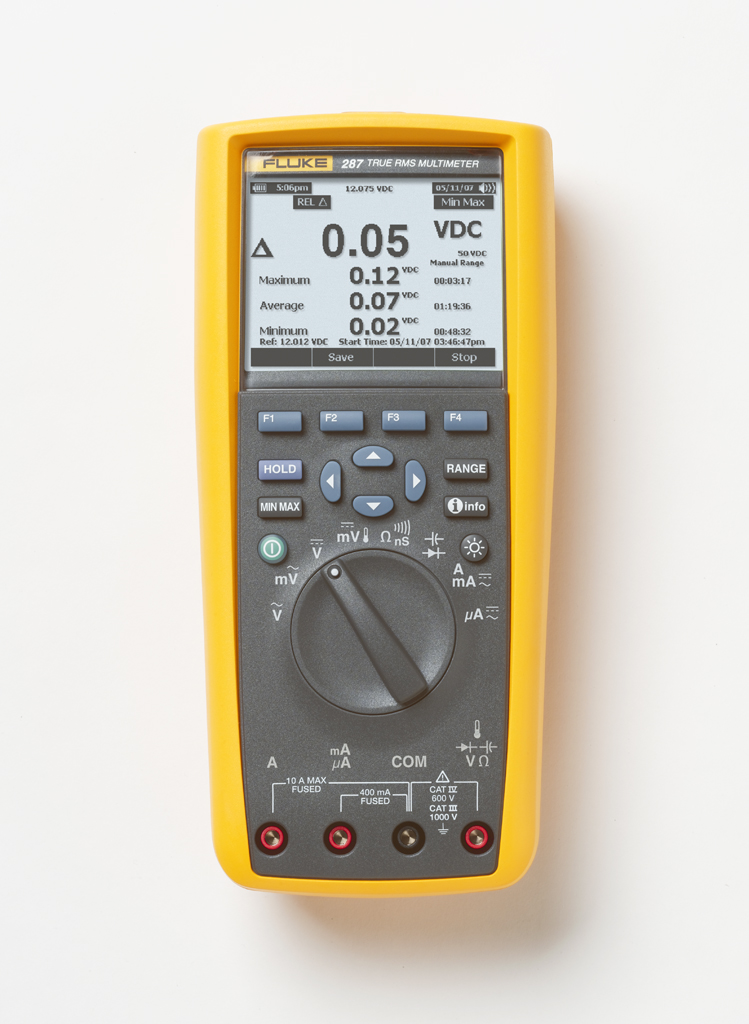

FLUKE  287  数字万用表

The True-rms Electronics Logging Multimeter with TrendCapture quickly documents design performance and graphically displays what happened. Its" unique logging and graphing capabilities mean you no longer need to download logged readings to a PC to detect a trend. The Fluke 287 packs more accuracy and convenience into a handheld multimeter than ever before, putting more problem solving power in your hands. It is the ultimate handheld tool for demanding applications that require high-precision.

.

Multiple logging sessions possible without download

.

0.025 % basic dc accuracy

.

100 kHz ac bandwidth

.

Real time clock for automatic time stamping of saved readings

.

True-rms ac voltage and current for accurate measurements on complex signals or non linear loads

.

Measure up to 10 A 20 A for 30 seconds

.

100 mF capacitance range

.

Temperature function

.

Relative mode to remove test lead resistance from low ohms or capacitance measurements

.

Peak capture to record transients as fast as 250 µs
