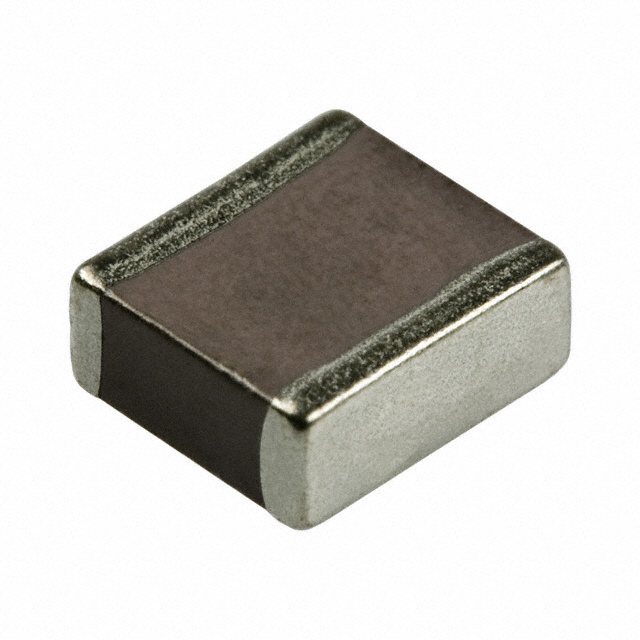

AVX 2225SC683KAZ1A 多层陶瓷电容器, 表面贴装, FLEXITERM®, 0.068 µF, ± 10%, X7R, 1.5 kV, 2225 [5664 公制]
The is a surface-mount SMT high-voltage Multilayer Ceramic Capacitor with FLEXITERM® Pure Sn terminations. High value, low leakage and small size are difficult parameters to obtain in capacitors for high voltage systems. special high voltage MLC chip capacitor meets these performance characteristics and is designed for applications such as snubbers in high frequency power converters, resonators in SMPS and high voltage coupling/DC blocking. This high voltage chip design exhibits low ESRs at high frequencies. To make high voltage chips, larger physical sizes than are normally encountered are necessary. The FLEXITERM® layer is designed to enhance the mechanical flexure and temperature cycling performance of a standard ceramic capacitor, giving customers a solution where board flexure or temperature cycle damage is concerns.
Special precautions must be taken in applying this chip in surface mount assemblies.
Capacitor with X7R dielectric is not intended for applications across AC supply mains or AC line filtering with polarity reversal.
额定电压DC 1.5 kV
工作电压 1.5 kV
电容 68000 pF
容差 ±10 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 1.5 kV
安装方式 Surface Mount
引脚数 2
封装公制 5763
封装 2225
长度 5.72 mm
宽度 6.35 mm
高度 2.54 mm
封装公制 5763
封装 2225
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
最小包装 500
制造应用 工业, 电源管理, Boardflex 敏感,SMPS 滤波, Power Management, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
2225SC683KAZ1A AVX 艾维克斯 | 当前型号 | 当前型号 |
C2225C683KFRACTU 基美 | 功能相似 | 2225SC683KAZ1A和C2225C683KFRACTU的区别 |
