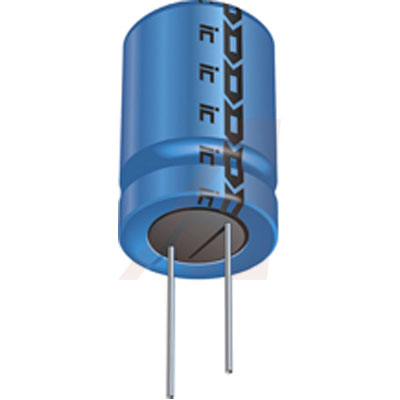

ILLINOIS CAPACITOR 227CKR035M 铝电解电容, 220uF, 35V, 径向引线
**Features:
**
* Temperature Range: –40°C to +85°C
* Tolerance: 20%
* Working Voltage: 6.3 to 450 VDC
* Load Life: 2000 Hours
* Small Size
* General Purpose
得捷:
CAP ALUM 220UF 20% 35V THRU HOLE
e络盟:
铝电解电容, 220uF, 35V, 径向引线
Allied Electronics:
Capacitor; Aluminum Electrolytic; Subminiature; Radial; 220uF; 35VDC; 10X12.5mm
Chip1Stop:
Cap Aluminum Lytic 220uF 35V 20% 10 X 12.5mm Radial 5mm 0.904 Ohm 450mA 1000h 85C
Verical:
Cap Aluminum Lytic 220uF 35V 20% 10 X 12.5mm Radial 5mm 0.904 Ohm 450mA 2000h 85C
Newark:
# ILLINOIS CAPACITOR 227CKR035M Electrolytic Capacitor, General Purpose, 220 µF, 35 V, CKR Series, ± 20%, Radial Leaded, 10 mm
额定电压DC 35.0 V
电容 220 µF
等效串联电阻ESR 0.904 Ω
容差 ±20 %
纹波电流 450 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 35 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 5 mm
高度 12.5 mm
直径 10.0 mm
封装 Radial, CAN
引脚间距 5 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
寿命（小时） 2000h @85℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
227CKR035M Illinois Capacitor | 当前型号 | 当前型号 |
227CKS035M Illinois Capacitor | 类似代替 | 227CKR035M和227CKS035M的区别 |
SK221M035ST Cornell Dubilier ElectronicsCDE | 功能相似 | 227CKR035M和SK221M035ST的区别 |
EEUTP1V221 松下 | 功能相似 | 227CKR035M和EEUTP1V221的区别 |
