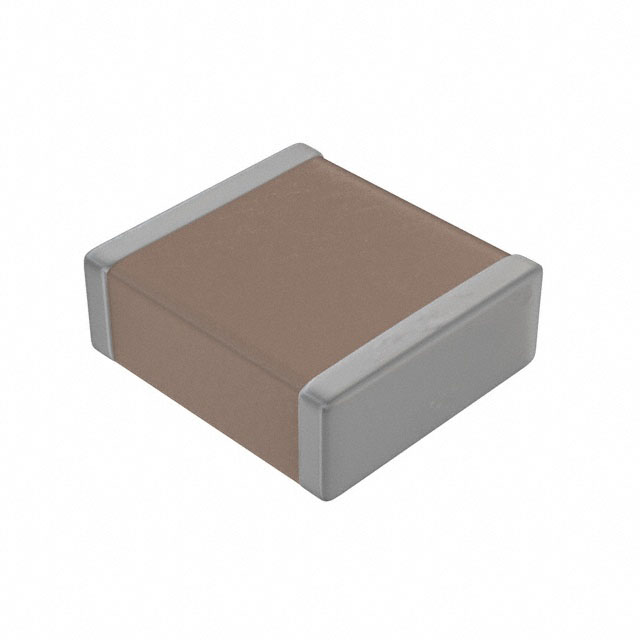

2220HC562KAT1A

AVX  2220HC562KAT1A  多层陶瓷电容器, 表面贴装, 高电压, 5600 pF, ± 10%, X7R, 3 kV, 2220 [5650 公制]

The is a surface-mount SMT high-voltage Multilayer Ceramic Capacitor with Ni and Sn plated terminations. High value, low leakage and small size are difficult parameters to obtain in capacitor for high voltage systems. special high voltage MLC chip capacitor meets these performance characteristics and is designed for applications such as snubbers in high frequency power converters, resonators in SMPS and high voltage coupling/DC blocking. This high voltage chip design exhibits low ESRs at high frequencies. Larger physical sizes than normally encountered chip is used to make high voltage MLC chip products.

.

Low parasitics

.

Excellent EMI filtering capabilities

.

Standard test level

.

Standard product

Special precautions must be taken in applying this chip in surface mount assemblies.

Capacitor with X7R dielectric is not intended for applications across AC supply mains or AC line filtering with polarity reversal.
