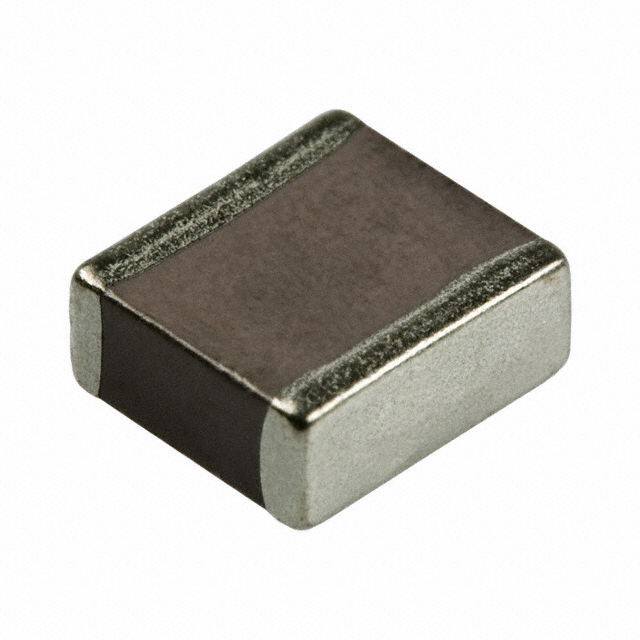

AVX 2225AC104KAT1A 多层陶瓷电容器, 表面贴装, 0.1 µF, ± 10%, X7R, 1 kV, 2225 [5664 公制]
0.1 µF ±10% 1000V(1kV) 陶瓷器 X7R 2225(5763 公制)
得捷:
CAP CER 0.1UF 1KV X7R 2225
e络盟:
多层陶瓷电容器, 表面贴装, 高电压, 0.1 µF, 1 kV, 2225 [5664 公制], ± 10%, X7R, AVX High Voltage MLCC
艾睿:
With alternating layers of ceramic acting as the dielectric and electrodes, this 2225AC104KAT1A multilayer ceramic capacitor from AVX achieves a large capacitance in a small package. It can withstand a voltage of 1000 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 5.72 mm long, 2.54Max mm tall and 6.35 mm deep. It has a tolerance of 10%. Its capacitance value is 0.1uF.
安富利:
Cap Ceramic 0.1uF 1000V X7R 10% SMD 2225 125°C T/R
Verical:
Cap Ceramic 0.1uF 1000V X7R 10% Pad SMD 2225 125C Low ESR T/R
Newark:
# AVX 2225AC104KAT1A SMD Multilayer Ceramic Capacitor, 2225 [5664 Metric], 0.1 µF, 1 kV, ± 10%, X7R
额定电压DC 1.00 kV
绝缘电阻 100 GΩ
电容 0.1 µF
容差 ±10 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 1 kV
安装方式 Surface Mount
引脚数 2
封装公制 5763
封装 2225
长度 5.72 mm
宽度 0.250 in
高度 2.54 mm
封装公制 5763
封装 2225
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
制造应用 工业, Power Management, Industrial, 通用, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
2225AC104KAT1A AVX 艾维克斯 | 当前型号 | 当前型号 |
2225AC104KAT3A 艾维克斯 | 类似代替 | 2225AC104KAT1A和2225AC104KAT3A的区别 |
2225AC104KAT9A 艾维克斯 | 类似代替 | 2225AC104KAT1A和2225AC104KAT9A的区别 |
102S48W104KV4E 约翰逊 | 功能相似 | 2225AC104KAT1A和102S48W104KV4E的区别 |
