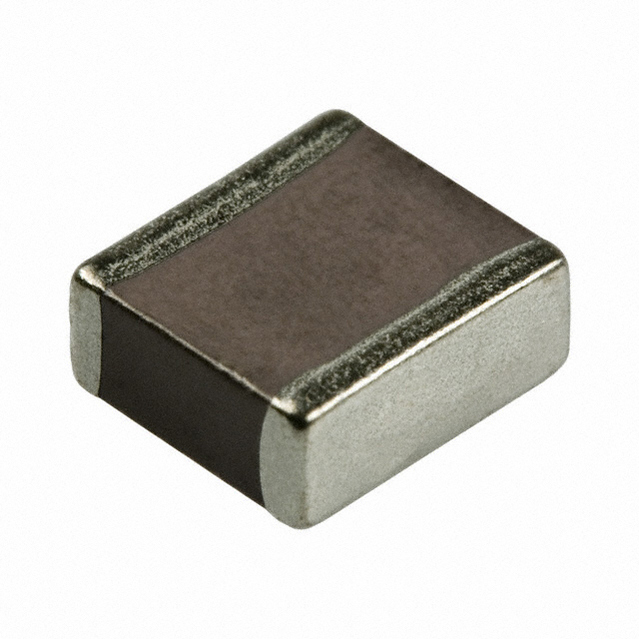

AVX 2225GC333KAT1A 多层陶瓷电容器, 表面贴装, 0.033 µF, ± 10%, X7R, 2 kV, 2225 [5664 公制]
The is a Multilayer Ceramic Capacitor with Ni/Sn-plated termination, X7R dielectric and 2225 case. The high value, low leakage and small size are difficult parameters to obtain in capacitor for high voltage systems. The high voltage MLC chip capacitor meets this performance characteristic and is designed for applications such as snubbers in high frequency power converters, resonators in SMPS and high voltage coupling/DC blocking. Larger physical sizes than normally encountered chips are used to make high voltage MLC chip products. The temperature gradient during heating or cooling cycles should not exceed 4°C per second. The preheat temperature must be within 50°C of the peak temperature reached by the ceramic bodies through the soldering process.
额定电压DC 2.00 kV
电容 33000 pF
容差 ±10 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 2 kV
安装方式 Surface Mount
引脚数 2
封装公制 5763
封装 2225
长度 5.72 mm
宽度 6.35 mm
高度 2.54 mm
封装公制 5763
封装 2225
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
制造应用 电源管理, 通用, 工业, Industrial, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
2225GC333KAT1A AVX 艾维克斯 | 当前型号 | 当前型号 |
2225GC333KAT3A 艾维克斯 | 类似代替 | 2225GC333KAT1A和2225GC333KAT3A的区别 |
