2106091-5

TE CONNECTIVITY  2106091-5  线至板连接器, 6 触点, 针座, 1.5 mm, 表面安装　, 1 排

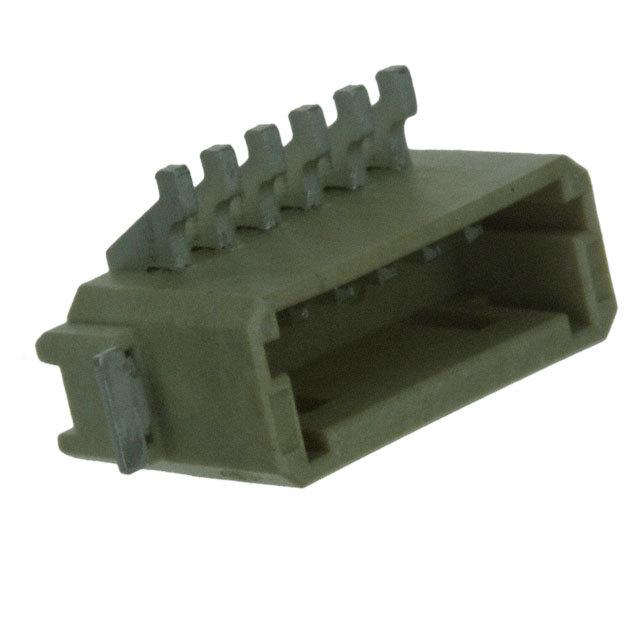

6 pos Inverted Thru Board SMT Header

得捷:
CONN HEADER SMD T/H 6POS 1.5MM

e络盟:
TE CONNECTIVITY  2106091-5  线至板连接器, 6 触点, 针座, 1.5 mm, 表面安装　, 1 排

艾睿:

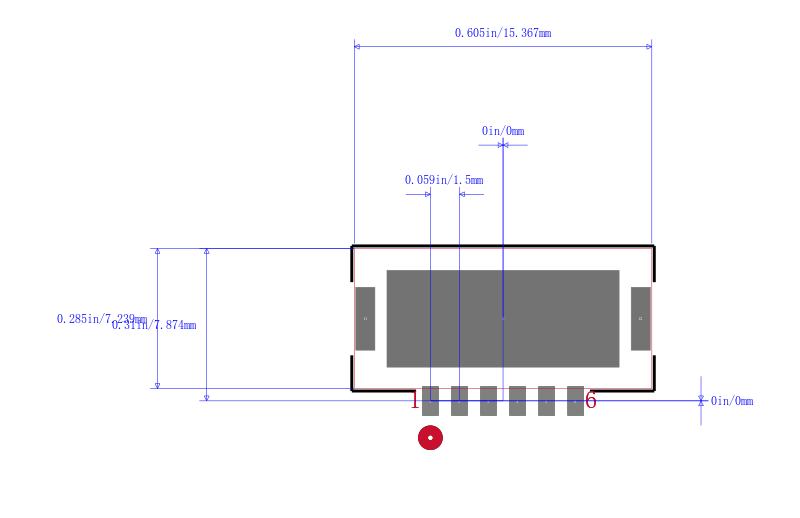

Use this wire to board 2106091-5 header connector from TE Connectivity where IDC ribbon cables are used. This RCP connector&s;s 6 contacts that are made out of copper alloy and plated with tin over nickel. It has a receptacle type gender. It has a maximum voltage rating of 50 VDC|50VAC. It has a straight body orientation. This is a 1-row connector. Its pitch is 1.5 mm. This device has a maximum current rating of 3 A/contact. This connector has an operating temperature of -40 to 105 °C. It uses the solder termination method. 2106091-5 is housed in thermoplastic. This product is 15.11 mm long, 6.9 mm tall and 7.25 mm deep.

安富利:
Conn Wire to Board RCP 6 POS 1.5mm Solder ST SMD

Chip1Stop:
Conn Wire to Board RCP 6 POS 1.5mm Solder ST SMD Box

Verical:
Conn Wire to Board RCP 6 POS 1.5mm Solder ST SMD Box

Newark:
# AMP - TE CONNECTIVITY  2106091-5  6 POS INVERTED THRU BOARD SMT HEADER New

MASTER:
ASSEMBLY, THRU BOARD INVERTED SMT CONNECTOR

Powell:
LED Interconnects

Online Components:
6 pos Inverted Thru Board SMT Header

Electro Sonic:
6 pos Inverted Thru Board SMT Header

Win Source:
CONN HEADER SMD T/H 6POS 1.5MM / Connector Header Surface Mount, Through Board 6 position 0.059" 1.50mm
