2007815-1

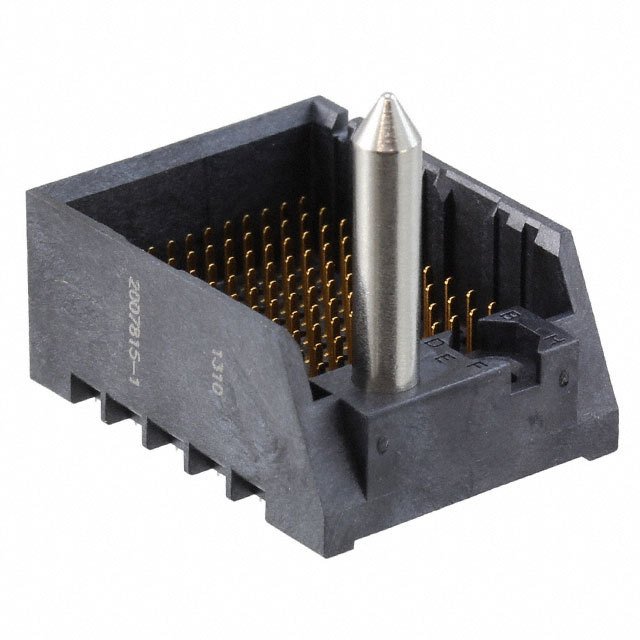

TE CONNECTIVITY  2007815-1  连接器, IMPACT系列, 背板, 120 触点, 针座, 1.9 mm, 压配合

120 接头，公引脚 通孔 黑色 Impact，右侧导引

得捷:
CONN HEADER IMPACT 120POS PCB

立创商城:
2007815-1

e络盟:
TE CONNECTIVITY  2007815-1  连接器, IMPACT系列, 背板, 120 触点, 针座, 1.9 mm, 压配合

艾睿:
The 2007815-1 backplane connector, developed by TE Connectivity, can provide you with a much faster transfer rate as opposed to other types of connectors. This HDR connector&s;s 80signal / 40ground contacts that are made out of copper alloy and plated with gold over nickel. It has a straight body orientation. Its pitch is 1.9 mm. This is a 12-row connector. It has a header type gender. It has a maximum voltage rating of 120 VDC|120VAC. This device has a maximum current rating of 0.75 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the press fit termination method. 2007815-1 is housed in liquid crystal polymer. This product is 26.9 mm long, 24.6 mm tall and 20.8 mm deep. This backplane connector has an operating temperature of -55 to 85 °C.

Chip1Stop:
Conn Backplane HDR 80Signal/40Ground POS 1.9mm Press Fit ST Thru-Hole Tube

Verical:
Conn Backplane HDR 80Signal/40Ground POS 1.9mm Press Fit ST Thru-Hole Tube

Newark:
# TE CONNECTIVITY  2007815-1  Connector, IMPACT Series, Backplane, 80 Contacts, Header, 1.9 mm, Press Fit

MASTER:
IMPACT, 4 PAIR, 10 COLUMN, HEADER RIGHT GUIDED, LEFT END WALL

Online Components:
IMP100S,H,V4P10C,RG,LEW39,4.5

Electro Sonic:
IMP100S,H,V4P10C,RG,LEW39,4.5
