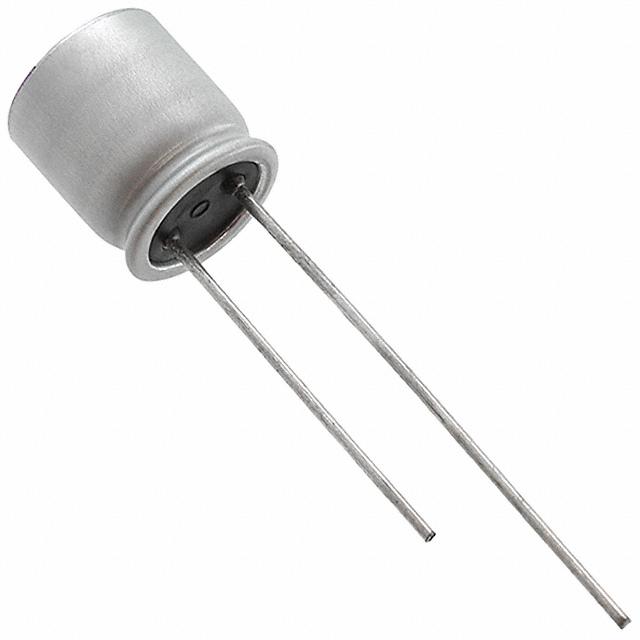

2SEPC820MX

PANASONIC ELECTRONIC COMPONENTS  2SEPC820MX  铝电解电容, OS-CON, SEPC系列, 820 µF, 0.007 ohm, 2.5 V, 5000 hours @ 105°C

If you need a device that can support a change in the load of a circuit, the conductive polymer aluminum solid capacitor from is the component you need. Users like its long lead wire form. It can withstand a voltage of 2.5 VDC. This part has a lead diameter of 0.6 mm. It has 2 terminals. The 2SEPC820MX conductive polymer aluminum solid capacitor has a radial termination style. It has a tolerance of 20%. This product"s terminal pitch is 3.5 mm. This product is 9Max mm tall with a diameter of 8 mm. Its leakage current is 500@2Min μA. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -55 °C and a maximum of 105 °C.
