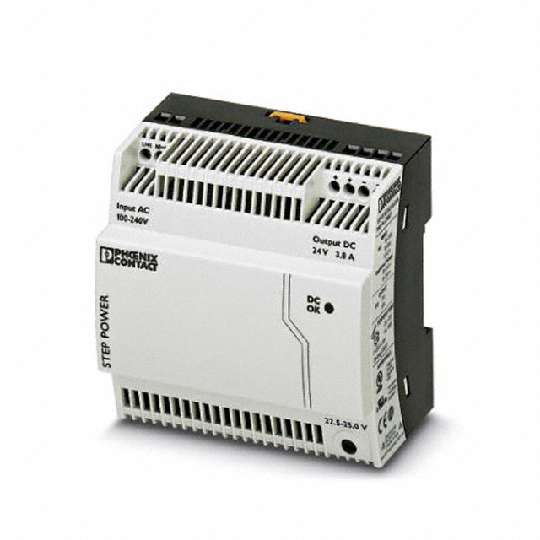

STEP POWER 单相电源由于其设计特点，STEP POWER 新一代紧凑型电源设备特别适合于安装配电盘和平面控制面板。 设备的高效率和低待机损耗可实现高功率效率。便于安装在导轨和墙壁上 通过低损耗，实现最高的能效 快速速试运行，带有 LED 功能监控 满载条件下，长时间电源故障可实现高操作安全 多种类输入能量和国际认可封装，世界通用 温度范围广（-25 ° C 至 +70 ° C） 并行切换，可提高性能和冗余 ### 认可UL/C-UL 认证 UL 60950，获得 UL/C-UL 认证 UL 508 ### 开关模式 - Phoenix Contact 单相和三相电源多种电源，基于其技术属性和有竞争性的价格，非常适合面板制作人员、标准机床生产、替代现有电源或类似应用。
Contact"s completely redesigned STEP Power Supplies now include increased capacity and expanded features. This second generation of STEP Power Supplies creates additional mounting options for a broader range of industries. The new housing package mounts on to the DIN-rail or can be panel mounted through the housing"s unique DIN-rain clips.
These new STEP Power Supplies" robust voltage versus current output characteristic allows the power supply to start-up heavier capacity loads without losing output capacity. With this new feature, the power supply better handles short circuit faults by protecting the output instead of turning off.
* New Power Supply Family for Fitting Into Installation Distributors and Flat Operator Panels
* Double Power Density Due to a High Level of Efficiency
* Flexible Assembly: Snaps-On to DIN-Rail or Direct Panel Mounting
* Worldwide Use Due to Wide Range Input
额定功率 91 W
输出接口数 1
输出电压 24 V
输出电流 3.8 A
输出功率 91.2 W
隔离电压 4 kV
输入电压Max 264 VAC
输入电压Min 85 VAC
输入电压DC Max 250 V
输入电压DC Min 95 V
输入电压AC Max 264 V
输入电压AC Min 85 V
输出电压Max 25 VDC
输出电压Min 22.5 VDC
输出电流Max 3.8 A
输入电流Min 1.3 A
输出功率Max 91.2 W
工作温度Max 70 ℃
工作温度Min -25 ℃
输入电压 85VAC ~ 264VAC
安装方式 DIN Rail
引脚数 6
长度 61 mm
宽度 90 mm
高度 90 mm
重量 0.4 kg
工作温度 -25℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504407007
