2280336概述

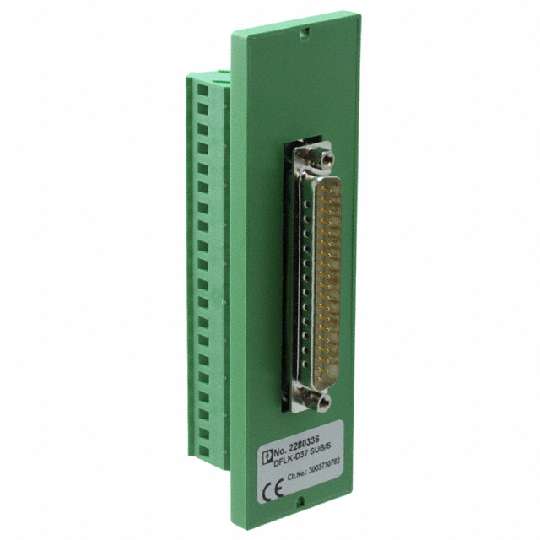

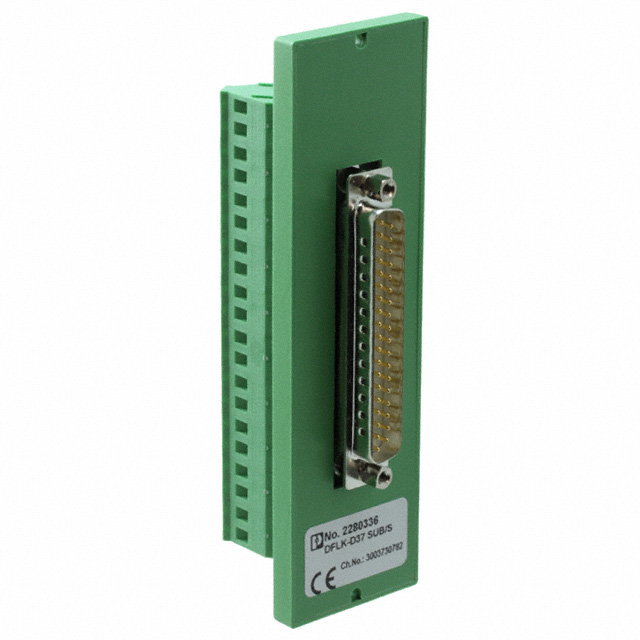

Conn VARIOFACE Module 37POS ST

**VARIOFACE Interface Module**

The VARIOFACE feed-through module implements a 1:1 connection between connection terminal blocks and a D-SUB or IDC/FLK miniature socket strip.


得捷:
INTER MOD D SUB PINSTRIP 37 POS


欧时:
PANEL FEED-THROUGH MODULE, 37-POS.


艾睿:
The VARIOFACE feed-through module implements a 1:1 connection between screw connection terminal blocks and a D-SUB miniature pin strip number of positions: 37. A separate ground tap is available.


Allied Electronics:
D-Sub Miniature, M3 Screw Male Interface Module for use with DCS, PLC


Verical:
The VARIOFACE feed-through module implements a 1:1 connection between screw connection terminal blocks and a D-SUB miniature pin strip number of positions: 37. A separate ground tap is available.


MASTER:
The VARIOFACE feed-through module implements a 1:1 connection between screw connection terminal blocks and a D-SUB miniature pin strip number of positions: 37. A separate ground tap is available.


Online Components:
VARIOFACE Module 37 POS ST


Electro Sonic:
The VARIOFACE feed-through module implements a 1:1 connection between screw connection terminal blocks and a D-SUB miniature pin strip number ...


2280336中文资料参数规格
技术参数

触点数 37

线规 12AWG ~ 24AWG

额定电流 2.5 A

排数 2

针脚数 37

额定电流Max 2.5 A

工作温度Max 45 ℃

工作温度Min -20 ℃

额定电压Max 125 V

额定电压 125 V

封装参数

安装方式 Panel

外形尺寸

长度 33 mm

宽度 39 mm

高度 39 mm

物理参数

外壳颜色 Green

工作温度 -20℃ ~ 45℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536904000
