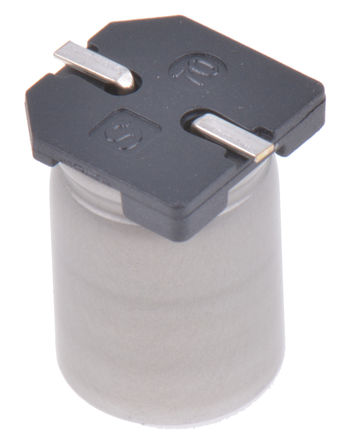

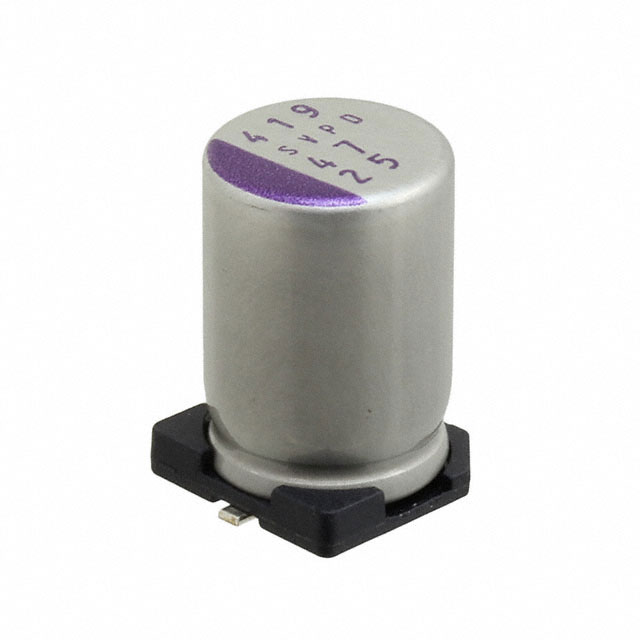

PANASONIC ELECTRONIC COMPONENTS 25SVPD47M 铝电解电容, SVPD系列, 47 µF, Radial Can - SMD, 0.03 ohm, 25 V, 2000 hours @ 125°C
OSCON 固态电解 SVPD 系列
耐受性:125℃ 时 2000h
可用于高可靠性应用,如汽车和工业设备
得捷:
CAP ALUM POLY 47UF 20% 25V SMD
欧时:
Capacitor Polymer OSCON SVPD 47uF 25V
立创商城:
47uF ±20% 25V
艾睿:
Look no further than the 25SVPD47M conductive polymer aluminum solid capacitor from Panasonic, ideal for use in supporting changes in the load of an integrated circuit. It can withstand a voltage of 25 VDC. It has 2 terminals. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 125 °C. It has a tolerance of 20%. This product is 11.9 mm tall with a diameter of 8 mm. Its leakage current is 235@2Min μA.
Verical:
Cap Aluminum Polymer 47uF 25VDC 20% 8 X 11.9mm SMD 0.03 Ohm 943mA 2000h 125C Automotive T/R
Newark:
# PANASONIC ELECTRONIC COMPONENTS 25SVPD47M CAP, ALU POLYMER, 47UF, 25V, RAD CAN
MASTER:
Cap Aluminum Polymer 47uF 25VDC 20% 8 X 11.9mm SMD 0.03 Ohm 943mA 2000h 125°C Automotive T/R
额定电压DC 25.0 V
电容 47 µF
等效串联电阻ESR 0.03 Ω
容差 ±20 %
纹波电流 943 mArms
纹波电流高频 47.15mA @120Hz
纹波电流低频 943mA @100kHz
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Surface Mount
封装 SMD
高度 11.9 mm
封装 SMD
工作温度 -55℃ ~ 125℃
产品生命周期 Unknown
包装方式 Cut Tape CT
寿命(小时) 2000h @125℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8532220020
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
25SVPD47M Panasonic 松下 | 当前型号 | 当前型号 |
