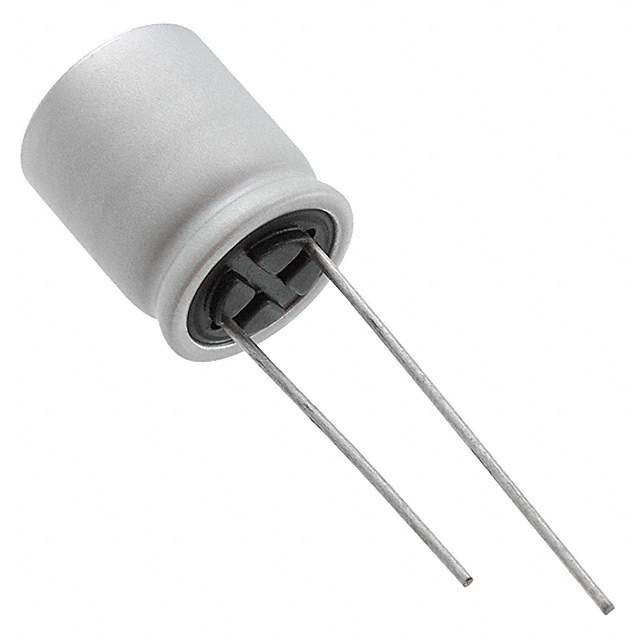

20SEP150M+T

聚合物铝电解电容器, 150 µF, 20 V, 径向引线, OS-CON SEP Series, 0.02 ohm, 3000 hours @ 105°C

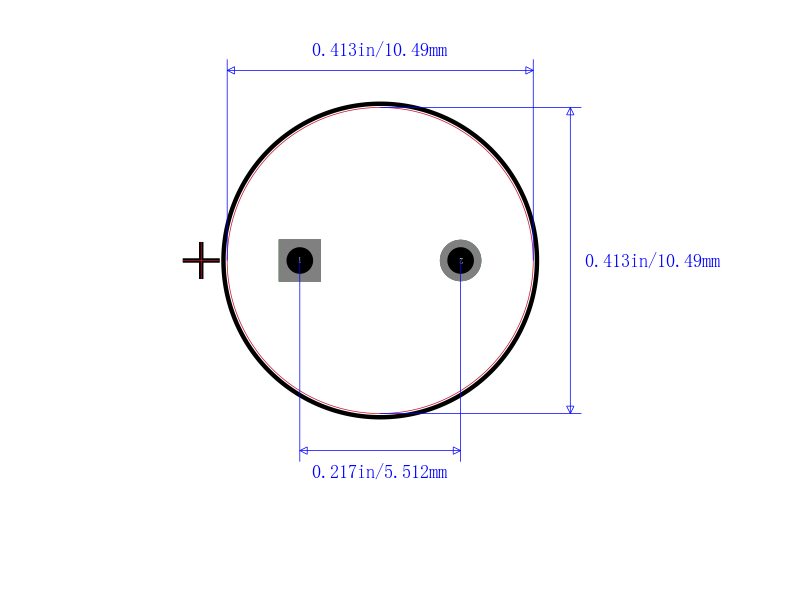

The polymer capacitor, made from pure aluminum and developed by , will handle all of your circuit"s voltage control needs. Users like its long lead wire form. It can withstand a voltage of 20 VDC. This part has a lead diameter of 0.6 mm. It has 2 terminals. Its leakage current is 600@2Min μA. This product is 13Max mm tall with a diameter of 10 mm. It has a tolerance of 20%. This product"s terminal pitch is 5 mm. The 20SEP150M+T conductive polymer aluminum solid capacitor has a radial termination style. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -55 °C and a maximum of 105 °C.
