2213145-1

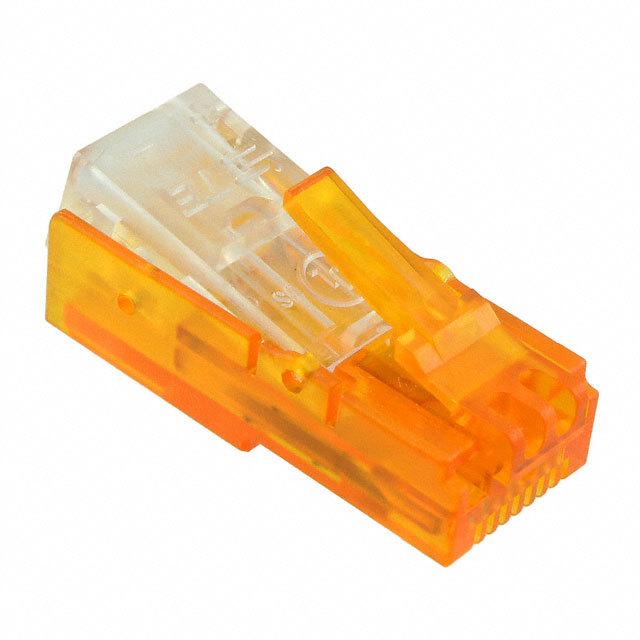

2213145-1图片1
2213145-1图片2
2213145-1图片3
2213145-1图片4
2213145-1图片5
2213145-1图片6
2213145-1图片7
2213145-1图片8
2213145-1概述

Modular Connectors / Ethernet Connectors 8P PIVOT POWER RJ45 ORANGE/CL NA VERSION

插头 模块化 8p2c(RJ45),2 电源 位置 无屏蔽 - IDC


得捷:
CONN MOD PLUG 8P2C UNSHIELDED


贸泽:
Modular Connectors / Ethernet Connectors 8P PIVOT POWER RJ45 ORANGE/CL NA VERSION


艾睿:
Use this modular pivot power rj-45 2213145-1 telephone and telecom connector from TE Connectivity to provide a secure connection for your high-speed network. This PL connector&s;s 8 contacts that are made out of copper alloy and plated with gold over palladium nickel. This connector has a single port. It has a straight body orientation. It has a plug type gender. This device has a maximum current rating of 1 A/contact. It uses the crimp termination method. 2213145-1 is housed in orange/clear polycarbonate. This product is 11.7 mm long. This cable has an operating temperature of -40 to 85 °C.


安富利:
PIVOT POWER RJ45 ASSEMBLY


Verical:
Conn Pivot Power RJ-45 PL 8 POS Crimp ST Cable Mount 8 Terminal 1 Port Box/Carton


Newark:
# AMP - TE CONNECTIVITY  2213145-1  Modular Connector, RJ45, Pivot Power RJ45 Series, Plug, 2 Contacts, 8 Positions, 1 Ports


MASTER:
CONNECTOR ASSEMBLY, PIVOT POWER RJ45


Online Components:
Pivot Power RJ45 Assembly


Electro Sonic:
Pivot Power RJ45 Assembly


2213145-1中文资料参数规格
技术参数

触点数 8

极性 Male

线规 18 AWG

触点电镀 Gold

额定电流 1 A

易燃性等级 UL 94 V-0

针脚数 8

屏蔽 No

额定电流Max 3.5A/触头

工作温度Max 85 ℃

工作温度Min -40 ℃

额定电压 60 V

封装参数

引脚数 8

外形尺寸

长度 28.50 mm

物理参数

外壳颜色 Orange

颜色 Orange

触点材质 Copper Alloy

工作温度 -40℃ ~ 85℃

外壳材质 Polycarbonate

其他

产品生命周期 Active

包装方式 Bulk

制造应用 Signal, Power

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8535908060

数据手册

在线购买2213145-1
型号: 2213145-1
描述:Modular Connectors / Ethernet Connectors 8P PIVOT POWER RJ45 ORANGE/CL NA VERSION
