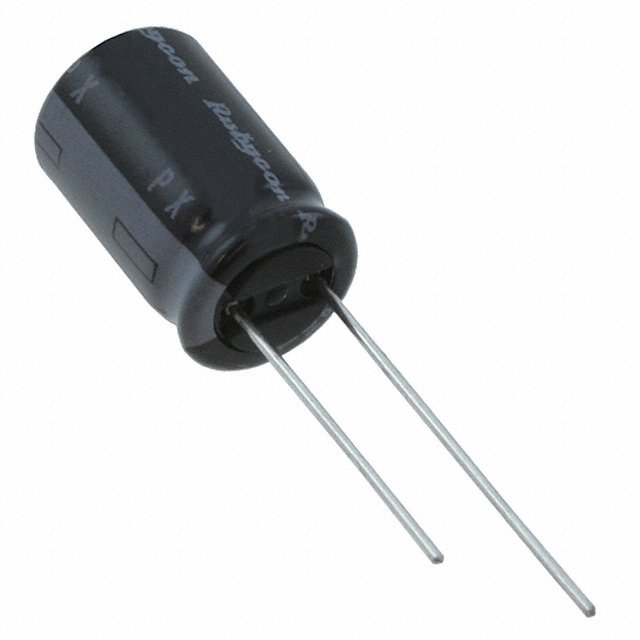

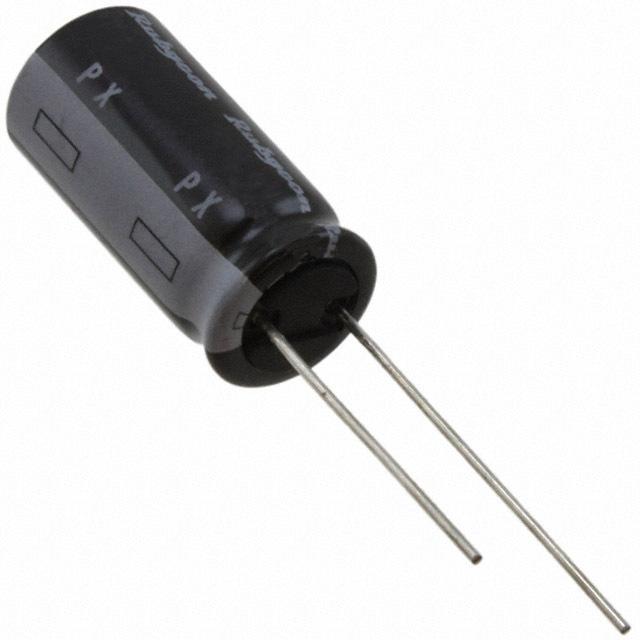

RUBYCON 25PX1000MEFCT810X16 铝电解电容, 微型, PX系列, 1000 µF, ± 20%, 25 V, 10 mm, 径向引线
The is a miniature aluminium Electrolytic Capacitor with radial leaded terminals and PET sleeve. The aluminium electrolytic capacitor has a feature in that it is small in size, large in capacity and highly resistant to overvoltage and reverse voltage as compared with other capacitors. Capacitor of this type is used in wide applications ranging from navigation systems requiring high performance and high reliability to AV audio and visual equipment and camera flashes.
- .
- 740mA RMS at 120Hz/105°C Rated ripple current
额定电压DC 25.0 V
电容 1000 µF
容差 ±20 %
纹波电流 740 mA
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 5 mm
高度 16 mm
直径 10.0 mm
封装 Radial, CAN
引脚间距 5 mm
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Each
寿命（小时） 2000h @105℃
制造应用 Consumer Electronics, Computers & Computer Peripherals, Aerospace, Defence, Military, Multimedia, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
25PX1000MEFCT810X16 Rubycon | 当前型号 | 当前型号 |
35YXA22MEFC5X11 Rubycon | 功能相似 | 25PX1000MEFCT810X16和35YXA22MEFC5X11的区别 |
