标准品

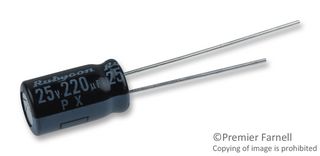

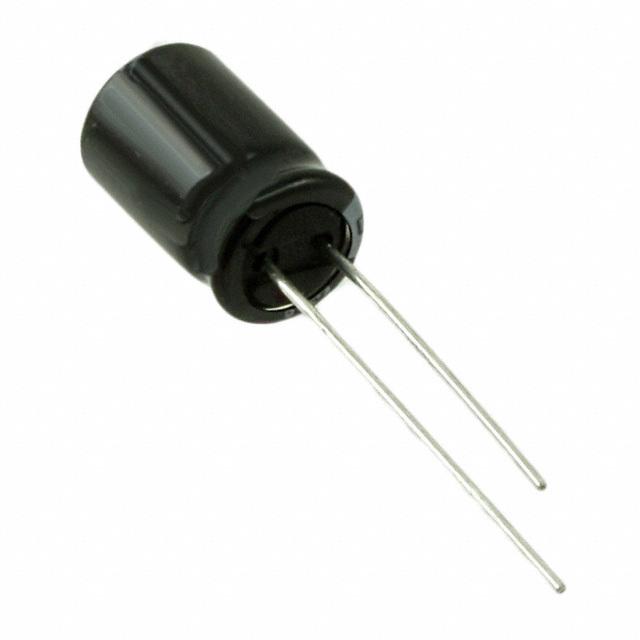

Choose this electrolytic aluminum capacitor from for its relatively high ESR. It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The 25PX220MEFC6.3X11 aluminum electrolytic capacitor has a radial termination style. Its leakage current is 3@2Min μA. This part has a lead diameter of 0.5 mm and a pitch of 2.5 mm. Its capacitance value is 220uF. It has a tolerance of 20%. This product is 11 mm tall with a diameter of 6.3 mm.
额定电压DC 25.0 V
电容 220 µF
容差 ±20 %
纹波电流 240 mA
纹波电流高频 240mA @120Hz
纹波电流低频 288mA @10kHz
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 2.5 mm
高度 11 mm
直径 6.30 mm
封装 Radial, CAN
引脚间距 2.5 mm
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
最小包装 2000
寿命（小时） 1000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
25PX220MEFC6.3X11 Rubycon | 当前型号 | 当前型号 |
25PX220MTA6.3X11 Rubycon | 完全替代 | 25PX220MEFC6.3X11和25PX220MTA6.3X11的区别 |
400YXA33MEFCKC16X25 Rubycon | 功能相似 | 25PX220MEFC6.3X11和400YXA33MEFCKC16X25的区别 |
