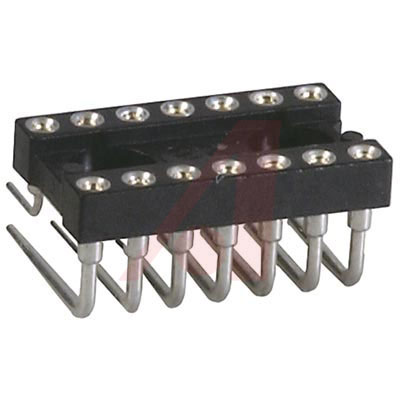

299-93-314-11-001000

Conn DIP Socket SKT 14POS 2.54mm Solder RA Thru-Hole Tube

Right Angle Mount Closed Frame DIP Sockets, Tin/Lead Pin, Gold Clip Contact Mating Area Plating

得捷:
CONN IC DIP SOCKET 14POS GOLD

艾睿:
This dip socket 299-93-314-11-001000 connector socket from Mill-Max Mfg. Corp. will allow you to interface multiple cables. This SKT connector&s;s 14 contacts that are made out of beryllium copper alloy and plated with gold over nickel. Its pitch is 2.54 mm. It has a maximum voltage rating of 150 VDC|100VAC. It has a right angle body orientation. It has a socket type gender. This is a 2-row connector. This device has a maximum current rating of 3 A. 299-93-314-11-001000 is housed in polychlorinated terphenyl. It is insulated with polychlorinated terphenyl. This product is 17.7 mm long, 10.1 mm tall and 8.13 mm deep. It uses the solder termination method. This connector socket has an operating temperature of -55 to 125 °C.

Allied Electronics:
Socket, DIP; Closed; 14 Pos.; 0.100In.cen.; Solder; Right Angle PCB; 0.3In.; 30muIn. Go

Chip1Stop:
Conn DIP Socket SKT 14 POS 2.54mm Solder RA Thru-Hole Tube
