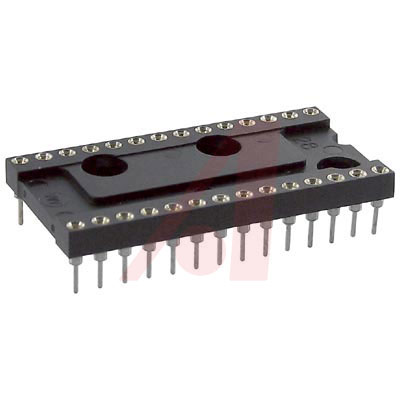

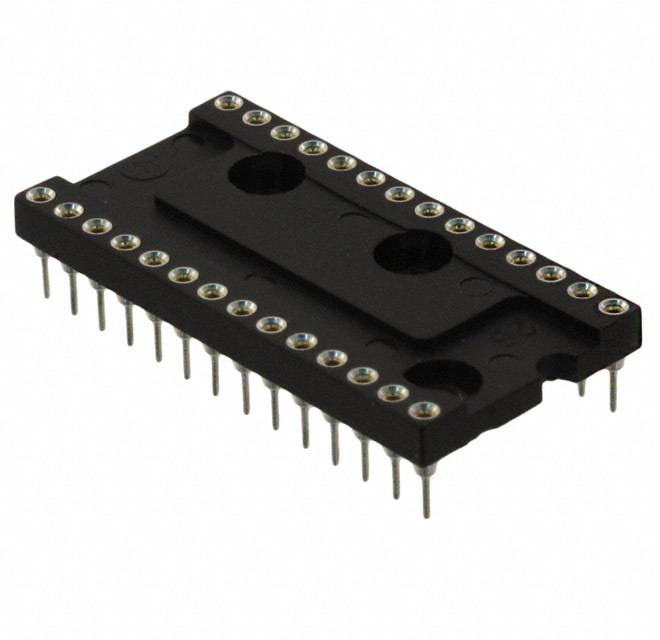

IC 与器件插座 28P SOLDER CLOSED
Solder Tail Closed Frame DIP Sockets, 3 A Current Rating
得捷:
CONN IC DIP SOCKET 28POS GOLD
贸泽:
IC 与器件插座 28P SOLDER CLOSED
艾睿:
Easily interface your multiple wired connection by implementing this dip socket 210-93-628-41-001000 connector socket manufactured from Mill-Max Mfg. Corp. This SKT connector&s;s 28 contacts that are made out of beryllium copper alloy and plated with gold over nickel. It has a straight body orientation. This is a 2-row connector. It has a socket type gender. It has a maximum voltage rating of 150 VDC|100VAC. Its pitch is 2.54 mm. This device has a maximum current rating of 3 A. 210-93-628-41-001000 is housed in polychlorinated terphenyl. It is insulated with polychlorinated terphenyl. It uses the solder termination method. This product is 35.56 mm long, 4.19 mm tall and 17.78 mm deep. This connector socket has an operating temperature of -55 to 125 °C.
Allied Electronics:
Socket, DIP; Closed; 4-Finger; 28 Pos.; 0.100In.cen.; Solder; 0.6In.; 30muIn. Gold; 0.12
Chip1Stop:
Conn DIP Socket SKT 28 POS 2.54mm Solder ST Thru-Hole Tube
Verical:
Conn DIP Socket SKT 28 POS 2.54mm Solder ST Thru-Hole Tube
触点数 28
触点电镀 Gold, Tin
额定电流 3 A
排数 2
针脚数 28
拔插次数 1000
安装角度 180 °
额定电流Max 3 A
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 150VDC, 100VAC
接触电阻Max 10 mΩ
安装方式 Through Hole
引脚数 28
封装 DIP
引脚间距 2.54 mm
长度 35.5 mm
宽度 17.7 mm
高度 4.19 mm
封装 DIP
引脚间距 2.54 mm
触点材质 Beryllium Copper
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
210-93-628-41-001000 Mill-Max 仕元机械 | 当前型号 | 当前型号 |
210-43-628-41-001000 仕元机械 | 类似代替 | 210-93-628-41-001000和210-43-628-41-001000的区别 |
