224-1286-00-0602J

3M  224-1286-00-0602J.  芯片和元件插座, DIP, 24 触点, 2.54 mm, 镀金触芯

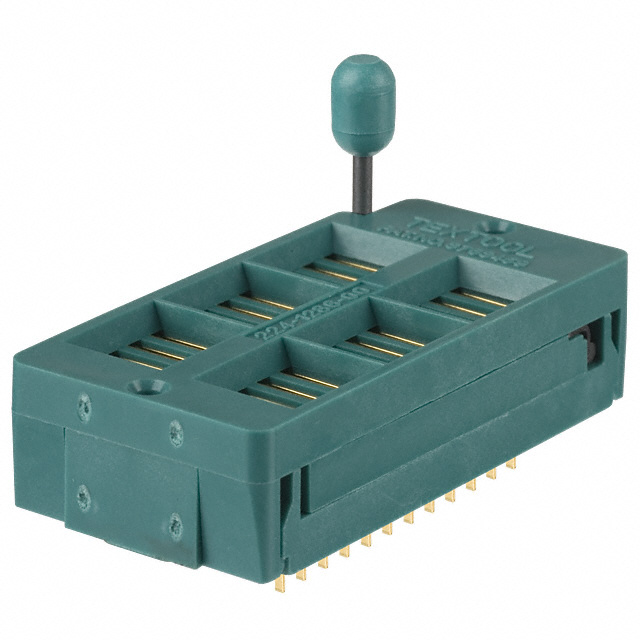

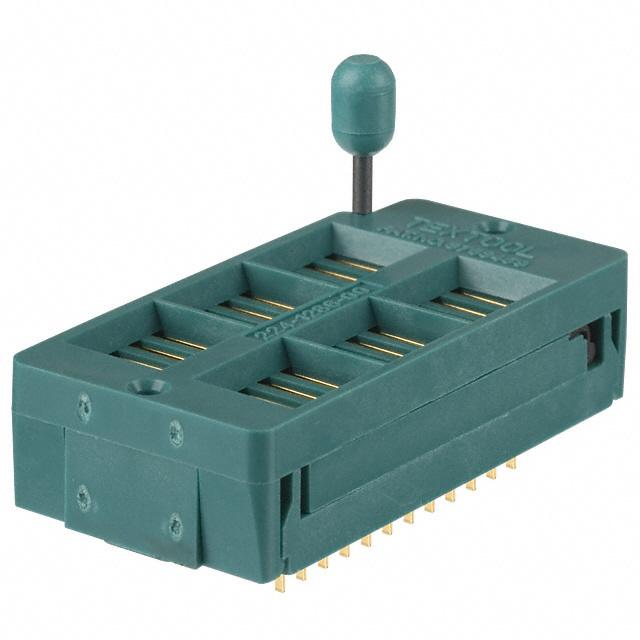

The is a 24-contacts 0.1-inch Universal DIP Socket with beryllium copper contacts and green glass filled polysulfone insulation. The socket will last 20000 actuations, when used as a test socket at room temperature 24°C.

.

Extra wide contact zone allows insertion of DIP"s with distance between rows from 0.3 to 0.6in

.

Lever actuated zero insertion force mechanism

.

Socket contact point of 0.09" below top surface of socket

.

1A Current rating

.

>1 x 10⁹R at 500VDC Insulation resistance

.

UL94V-0 Flammability rating

.

-55 to 85°C Temperature range
